Multiple Power-Outlet Socket Strip (If Equipped)

LX1045616-UN-07SEP10

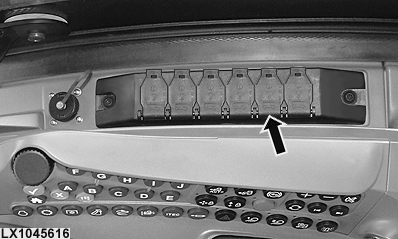

A strip of extra sockets can be installed between the door and the switch console. Terminal A of the socket strip provides a max. permanent direct current of 25 amps. Terminal B is ground. Terminal C provides a max. permanent direct current of 5 amps.

Turn key in key switch to the right to supply power to terminal C. Terminal A is supplied with power even when the ignition is switched off.

IMPORTANT: Electrical equipment requiring high current inputs may be operated, and the use of multiple power outlets is permitted, but the supply circuit must never be overloaded. Remember, total load comprises the sum of all the current consumers connected to the on-board circuit at any one time. This also applies if the consumers are connected to the on-board circuit at different sockets.
