Cigarette Lighter and Ashtray

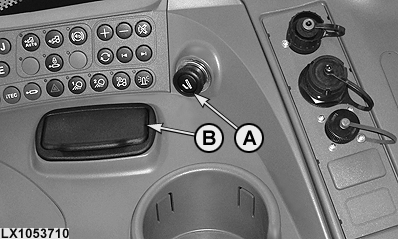

LX1053710-UN-28JUN11

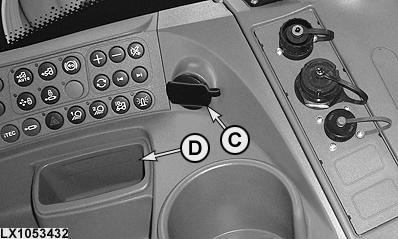

LX1053432-UN-29MAR12

A - Cigarette Lighter

B - Ashtray

C - 12-volt Socket

D - Storage Tray

To remove ashtray (B), open the ashtray and pull it up. Storage tray (D) may be equipped instead of the ashtray.

Cigarette lighter (A) may be used as a 12-volt socket. A 12-volt socket (C) may be equipped instead of the cigarette lighter. An electrical consumer with a requirement for max. 120 watt can be connected to the 12-volt socket or to the cigarette lighter.
