Air Comfort Seats — MSG95AL and MSG95AL-DDS

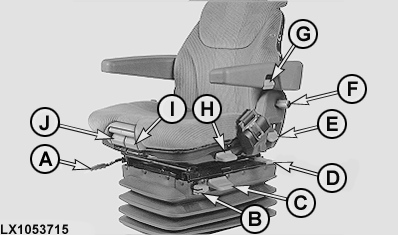

LX1053715-UN-29JUN11

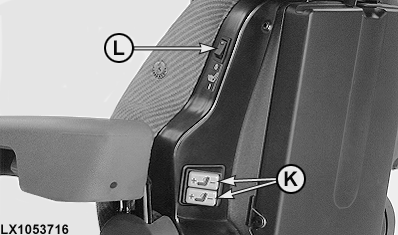

LX1053716-UN-29JUN11

IMPORTANT: When adjusting the seat, there is a danger of crushing. Objects placed in the cab may limit free space. Make sure that there is sufficient distance to adjacent components to prevent collisions. Accidental contact with the controls could cause the tractor or implement to operate.

IMPORTANT: Align and lock the operator's seat in driving direction as a rule when driving the tractor.

• A — Fore/aft adjustment

  Pull lever (A) up and move the seat to the desired position. Let the lever click into place.

• B — Adjust fore/aft suspension
  • Lever (B) to the front - no fore/aft suspension
  • Lever (B) backward - fore/aft suspension active

• C — Weight adjustment

  The operator's seat must be occupied in order to adjust it to the operator's weight. Start the engine, allow the seat to settle, then pull lever (C) up briefly. The seat adjusts itself automatically to the weight of the operator.

  NOTE: The operator's seat can be set for a weight of 50 to 130 kg (110 to 285 lb).

• C — Height adjustment

  After the weight adjustment has been made, the seat can be adjusted to any height. To adjust the height, pull lever (C) upward as high as it will go or push it down. If the top or bottom limit is reached during height adjustment, automatic height adjustment takes place to ensure a minimum amount of travel up and down (suspension).

• D — Adjust lateral suspension
  • Lever (D) forward - Lateral suspension active
  • Lever (D) backward - No lateral suspension

• E — Adjust tilt of backrest

  Pull lever (E) upwards and hold. Tilt the angle of the backrest to the desired position and let the lever latch back in audibly.

• F — Adjust height of armrests

  Knob (F) allows the height of the armrests to be adjusted to any of 5 positions.

• G — Adjust tilt of armrests

  Knob (G) allows armrest tilt to be adjusted (infinitely variable). To lower the armrest by 30°, press the armrest tilt adjuster (G) into the armrest.

• H — Adjust swivel

  IMPORTANT: Use the swivel to the left only for entering and exiting.

  The seat swivel is operated by means of lever (H) as follows:

  Pull up the lever and the seat can swivel freely to the left and right by 15°. To lock, press the lever down and seat snaps into place at the next 7.5° position.

  NOTE: On versions with CommandArm™ or a multi-function lever on the armrest, swivel the operator's seat to the left by only 7.5°. Avoid collisions with the steering wheel.

• I — Adjust seat tilt

  Pull handle (I) up and move the seat to the desired angle. Let the handle click into place.

• J — Adjust seat cushion

  Pull handle (J) up and move the seat cushion to the desired position. Let the handle click into place.

• K — Adjust lumbar support on backrest

  Use rocker switches (K) to adjust the position of the lumbar support.

• L — Seat heater

  Switch (L) is for switching the seat heater on and off.
