Access to Fuses

LX1045629
LX1045629-UN-16FEB11

Fuses in Footwell (LCS)

LX1053354
LX1053354-UN-10JAN12

Fuse Box behind Access Step (PLB)

LX1045698
LX1045698-UN-22NOV10

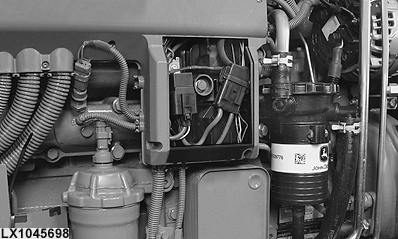

Fuse Box at Engine

The fuse and relay box of the Load Center Secondary (LCS) circuit is located in the right console, in the footwell.

The fuses and relays of the Power Link Box (PLB) are located behind the right access step.

The fuse and relay of the electrical starting aid are located on the right side of the engine.
