Air Brake System - Check for Condensed Water

LX1045636
LX1045636-UN-07OCT10

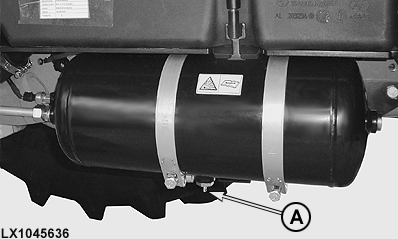

To drain water from the compressed air tank, push or pull valve pin (A) to the side. Do not use your hands to do this; use a suitable tool.

CAUTION: Wear protective goggles when draining water.

If condensation (water) is found during the daily check of the compressed-air tank, the air-drier cartridge must be replaced immediately.

Replace the air-drier cartridge every 1500 hours or every 2 years at the latest. See Service / Every 1500 Hours or 2 Years.

CAUTION: A tire inflation connection may be attached to the compressed-air tank.

The full pressure of the air tank (800 kPa; 8 bar; 116 psi) is present at the tire inflation connection. Do NOT over-inflate the tires!

OULXA64,000262E-19-20110726
