Check Transmission/Hydraulic System Oil Level

LX1053347
LX1053347-UN-12JAN12

Without Additional Oil Reservoir, on 6140-6150R

LX1053348
LX1053348-UN-12JAN12

With Additional Oil Reservoir, on 6140-6150R

LX1053343
LX1053343-UN-21DEC11

Without Additional Oil Reservoir, on 6170-6210R

LX1046201
LX1046201-UN-13JUL11

With Additional Oil Reservoir, on 6170-6210R

LX1053301
LX1053301-UN-29SEP11

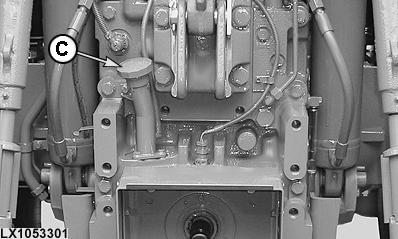

Filler Neck Shown on 6170-6210R

A - Max. Mark

B - Min. Mark

C - Filler Neck

IMPORTANT: Check oil level when oil is cold. If possible, check the oil level in the morning after the tractor has been standing overnight.

  1. Park tractor so that it is level.

  2. Engage park.

  3. Lower draft links, front loader, front implements and other implements that draw oil from the transmission.

  4. Oil level should be between marks (A) and (B) on the sight-glass. If it is not, add more oil at filler neck (C).

OULXA64,0002632-19-20120301
