Air Brakes - Change the Air-Drier Cartridge

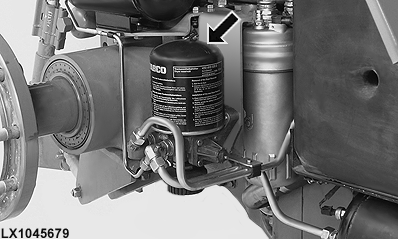

LX1045679-UN-11NOV10

CAUTION: Before doing this job, it is essential to relieve the pressure in the compressed-air system.

CAUTION: It may be necessary to change the air-drier cartridge sooner. If condensation (water) is found during the daily check of the compressed-air tank, the air-drier cartridge must be replaced immediately.

Replace the air-drier cartridge every 1500 hours or every 2 years.

Unscrew the air-drier cartridge and remove the O-ring.

Put on a new O-ring and tighten the new air-drier cartridge.
