Fuse and Relay Box (PLB) - (on Tractors 6170R to 6210R)
General information

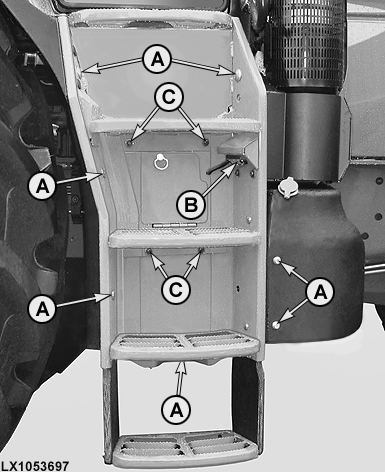

LX1053697-UN-10JAN12
LX1053353-UN-10JAN12
LX1053354-UN-10JAN12
IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than specified on the arrangement diagram.
IMPORTANT: Some fuse positions are vacant when the tractor is delivered; these must be left vacant until the appropriate options are retro-fitted.
The fuses and relays of the Power Link Box (PLB) are located behind the right access step.
IMPORTANT: On tractors with egress light (B), first remove the egress light before taking off the access step. To do this, take out screws (C) and remove the panel. Then take screws out of the egress light and remove egress light (B).
Take out the screws (A) that secure the access step, and remove the access step.
Take out screws (D) and lift the cover off the fuse and relay box (PLB).

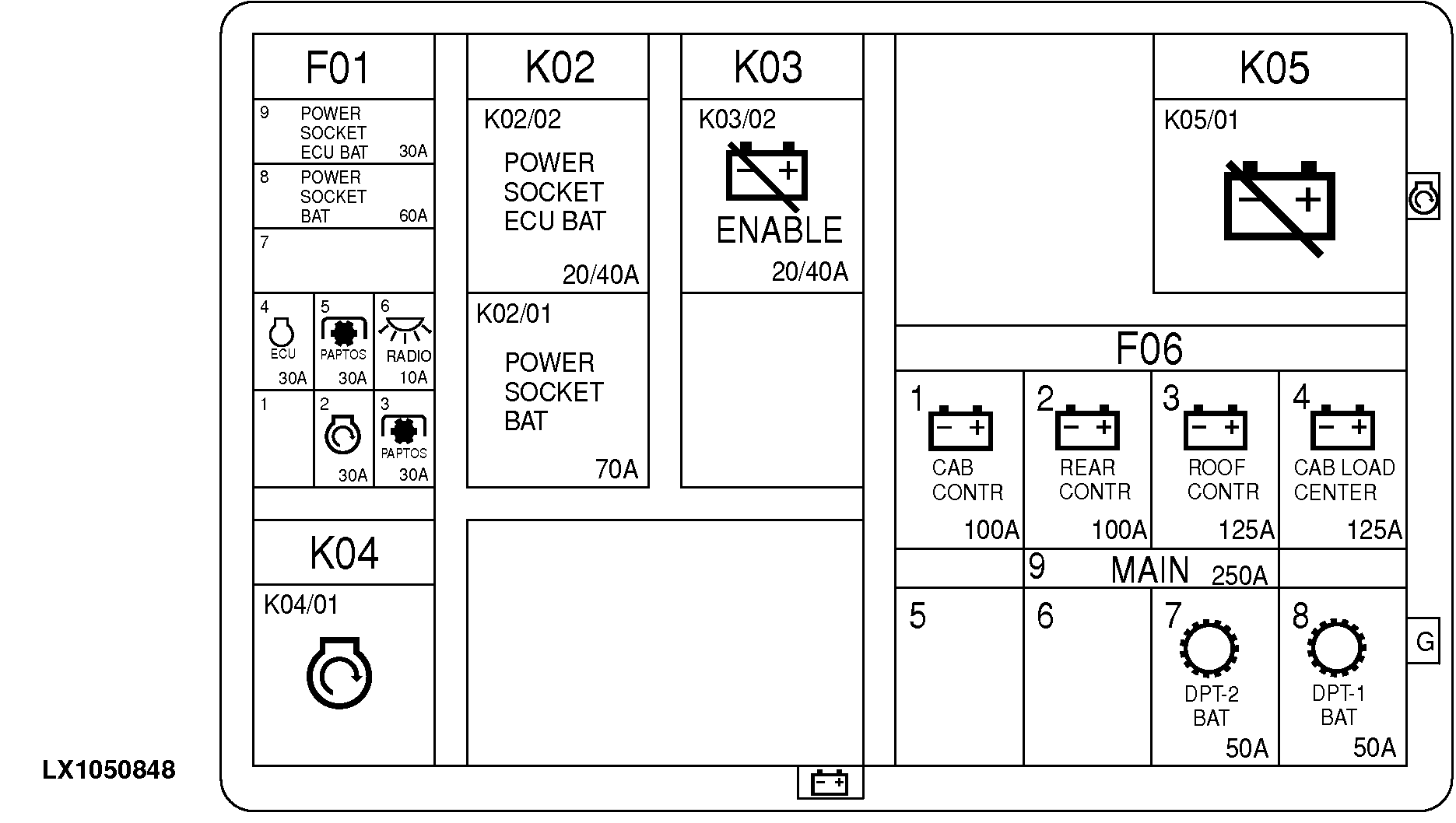

Summary of fuse and relay box (PLB) - (on tractors 6170R to 6210R)
LX1050848-UN-19OCT10
Fuses (PLB) - (on tractors 6170R to 6210R)
|
Fuse no. |
Capacity (amps) |
Consumer |
Fuse no. |
Capacity (amps) |
Consumer |
|---|---|---|---|---|---|
|
F01PLB/01 |
— |
Not used |
F06PLB/01 |
100 amps |
Power supply of cab control unit |
|
F01PLB/02 |
30 amps |
Starting motor relay |
F06PLB/02 |
100 amps |
Power supply of rear chassis control unit |
|
F01PLB/03 |
30 amps — |
Magnetic coils for rear PTO speeds (PAPTOS) Not used with DirectDrive transmission |
F06PLB/03 |
125 amps |
Power supply of roof control unit |
|
F01PLB/04 |
30 amps |
Engine control unit ECU |
F06PLB/04 |
125 amps |
Power supply of fuse and relay box (LCS) |
|
F01PLB/05 |
30 amps — |
Magnetic coils for rear PTO speeds (PAPTOS) Not used with DirectDrive transmission |
F06PLB/05 |
— |
Not used |
|
F01PLB/06 |
10 amps |
Fuse for battery voltage (with battery cut-off switch only) |
F06PLB/06 |
— |
Not used |
|
F01PLB/07 |
— |
Not used |
F06PLB/07 |
50 amps |
Solenoids for PTO speeds for power-assisted PTO shifting (PAPTOS) On DirectDrive transmission, solenoids for control unit for range shifting |
|
F01PLB/08 |
60 amps |
Implement sockets (power supply to components) |
F06PLB/08 |
— 50 amps |
Not used On DirectDrive transmission, solenoids for control unit for gear shifting |
|
F01PLB/09 |
30 amps |
Implement sockets (power supply of the implement control units) |
F06PLB/09 |
250 amps |
Main fuse |
Relays (PLB) - (on tractors 6170R to 6210R)
|
Relay no. |
Capacity (amps) |
Designation |
Relay no. |
Capacity (amps) |
Designation |
|---|---|---|---|---|---|
|
K02PLB/01 |
70 amps |
Relay for power supply to ISOBUS sockets |
K03PLB/02 |
20/40 amps |
Relay for battery cut-off relay |
|
K02PLB/02 |
20/40 amps |
Relay for power supply to implement control units (ISOBUS sockets) |
K04PLB/01 |
70/100 amps |
Starting motor relay |
|
K03PLB/01 |
- |
Not used |
K05PLB/01 |
- |
Battery cut-off relay |
|
OULXA64,000268B-19-20120914 |
