Fuses and Relays (LCS) with PowrQuad™ Transmission - (on Tractors 6170R to 6210R)
General information
LX1050130-UN-08MAR11
LX1050131-UN-16FEB11
IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one stated in the table.
IMPORTANT: Some fuse positions are vacant when the tractor is delivered; these must be left vacant until the appropriate options are retro-fitted.

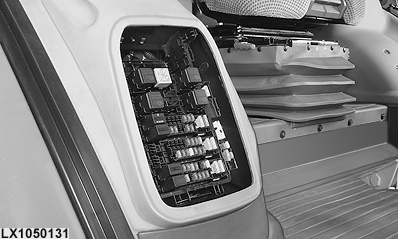

The fuse and relay box of the Load Center Secondary (LCS) circuit is located in the right console, in the footwell.

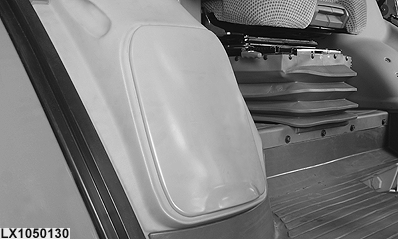

Remove fuse and relay box cover (LCS).

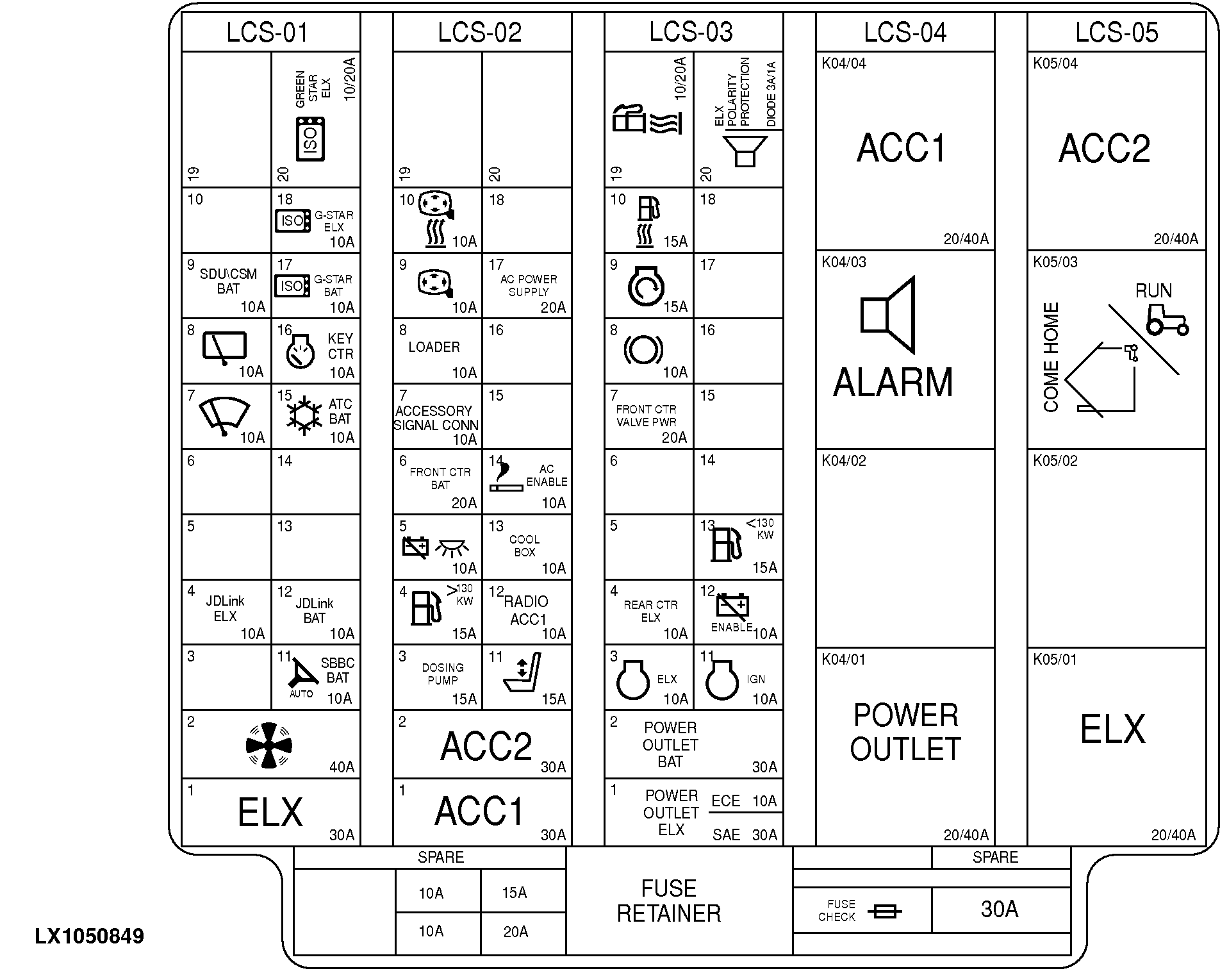

Summary of fuse and relay box (LCS) - (on tractors 6170R to 6210R)
LX1050849-UN-19OCT10
LCS-01 - F01LCS - Fuses (LCS) with PowrQuad™ Transmission
LCS-02 - F02LCS - Fuses (LCS) with PowrQuad™ Transmission
LCS-03 - F03LCS - Fuses (LCS) with PowrQuad™ Transmission
LCS-01 - K01LCS - Relays (LCS) with PowrQuad™ Transmission
LCS-02 - K02LCS - Relays (LCS) with PowrQuad™ Transmission
LCS-03 - K03LCS - Relays / Diodes (LCS) with PowrQuad™ Transmission
LCS-04 - K04LCS - Relays (LCS) with PowrQuad™ Transmission
LCS-05 - K05LCS - Relays (LCS) with PowrQuad™ Transmission
FUSE CHECK - Fuse Tester
FUSE RETAINER - Retainer for Tool for Changing Fuses (Suitable for all Types of Fuse)
SPARE - Spare Fuses

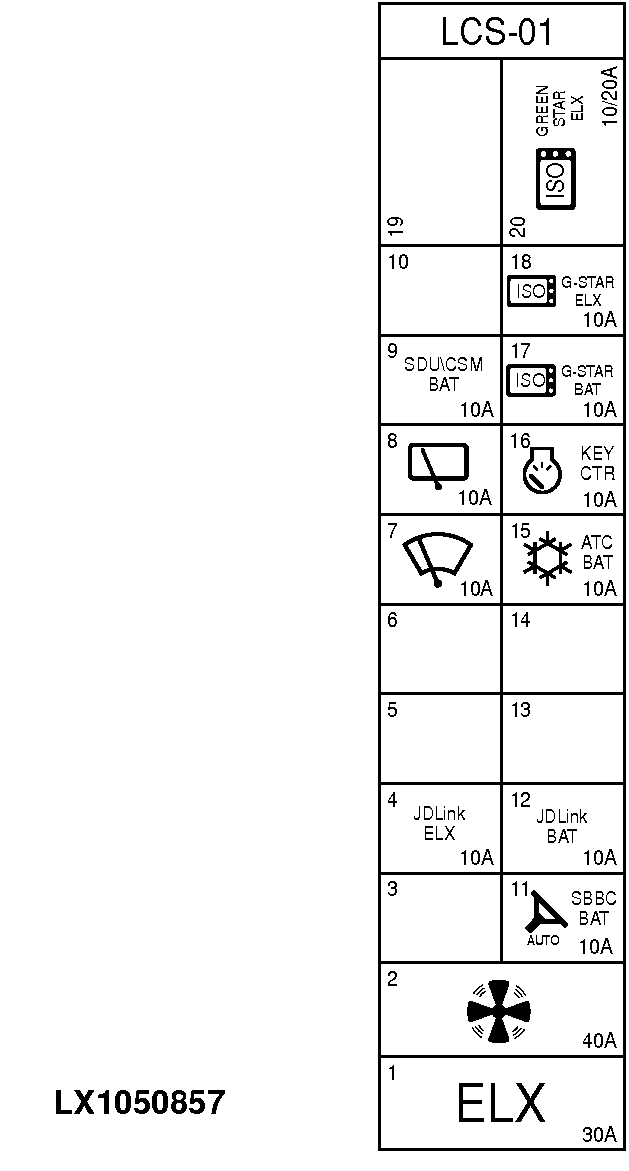

F01LCS - Fuses (LCS) with PowrQuad™ transmission - (on tractors 6170R to 6210R)
LX1050857-UN-19OCT10
|
Fuse no. |
Capacity (amps) |
Consumer |
|---|---|---|
|
F01LCS/01 |
30 amps |
Power supply to electronics (ELX) |
|
F01LCS/02 |
40 amps |
Recirculation fan motor |
|
F01LCS/03 |
- |
Not used |
|
F01LCS/04 |
10 amps |
Control unit for telematics (JDLink/Service ADVISOR Remote) |
|
F01LCS/05 |
- |
Not used |
|
F01LCS/06 |
- |
Not used |
|
F01LCS/07 |
10 amps |
Windshield wiper motor |
|
F01LCS/08 |
10 amps |
Rear window wiper motor |
|
F01LCS/09 |
10 amps |
Control unit for CommandCenter, control unit for switch module in cab, service socket (CAN BUS) |
|
F01LCS/10 |
- |
Not used |
|
F01LCS/11 |
10 amps |
Steering control unit (AutoTrac) |
|
F01LCS/12 |
10 amps |
Control unit for telematics (JDLink/Service ADVISOR Remote) |
|
F01LCS/13 |
- |
Not used |
|
F01LCS/14 |
- |
Not used |
|
F01LCS/15 |
10 amps |
Control unit for ClimaTrak™, radio or control unit for air-conditioning system, radio |
|
F01LCS/16 |
10 amps |
Instrument unit, immobilizer control unit |
|
F01LCS/17 |
10 amps |
GreenStar™ (AMS) |
|
F01LCS/18 |
10 amps |
GreenStar™ (AMS) |

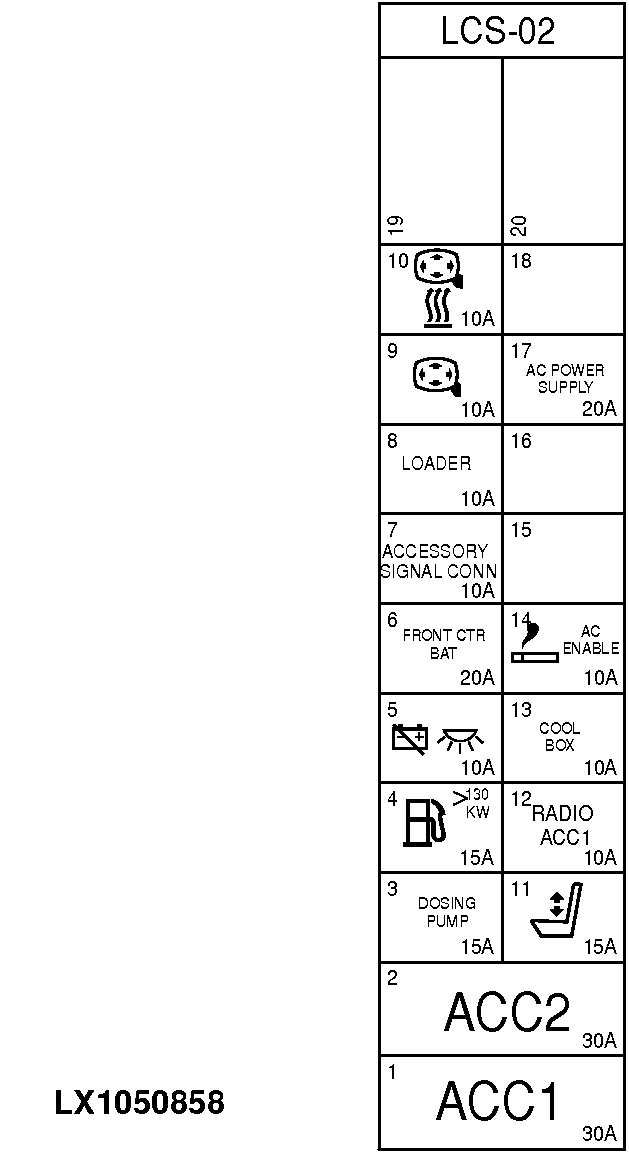

F02LCS - Fuses (LCS) with PowrQuad™ transmission - (on tractors 6170R to 6210R)
LX1050858-UN-19OCT10
|
Fuse no. |
Capacity (amps) |
Consumer |
|---|---|---|
|
F02LCS/01 |
30 amps |
Power supply for accessories (ACC1) |
|
F02LCS/02 |
30 amps |
Power supply for accessories (ACC2) |
|
F02LCS/03 |
15 amps |
Fuel metering pump (engines over 177 PS / 130 kW) for tractor models 6170R, 6190R and 6210R |
|
F02LCS/04 |
15 amps |
Fuel pump (engines over 177 PS / 130 kW) for tractor models 6170R, 6190R and 6210R |
|
F02LCS/05 |
10 amps |
Battery cut-off switch, access step lighting |
|
F02LCS/06 |
20 amps |
Front chassis control unit |
|
F02LCS/07 |
10 amps |
Connector for accessories (X37F-3), signal socket |
|
F02LCS/08 |
10 amps |
Connector for front loader (X37F), electro-hydraulic pick-up hitch (E-PUH) |
|
F02LCS/09 |
10 amps |
Electrical outside mirrors (adjustment) |
|
F02LCS/10 |
10 amps |
Electrical outside mirrors (heating) |
|
F02LCS/11 |
15 amps |
Operator's seat |
|
F02LCS/12 |
10 amps |
Radio |
|
F02LCS/13 |
10 amps |
Electrical cooling compartment |
|
F02LCS/14 |
10 amps |
Cigarette lighter, 230/115-volt current converter, video camera |
|
F02LCS/15 |
- |
Not used |
|
F02LCS/16 |
- |
Not used |
|
F02LCS/17 |
20 amps |
230/115-volt current converter |
|
F02LCS/18 |
- |
Not used |

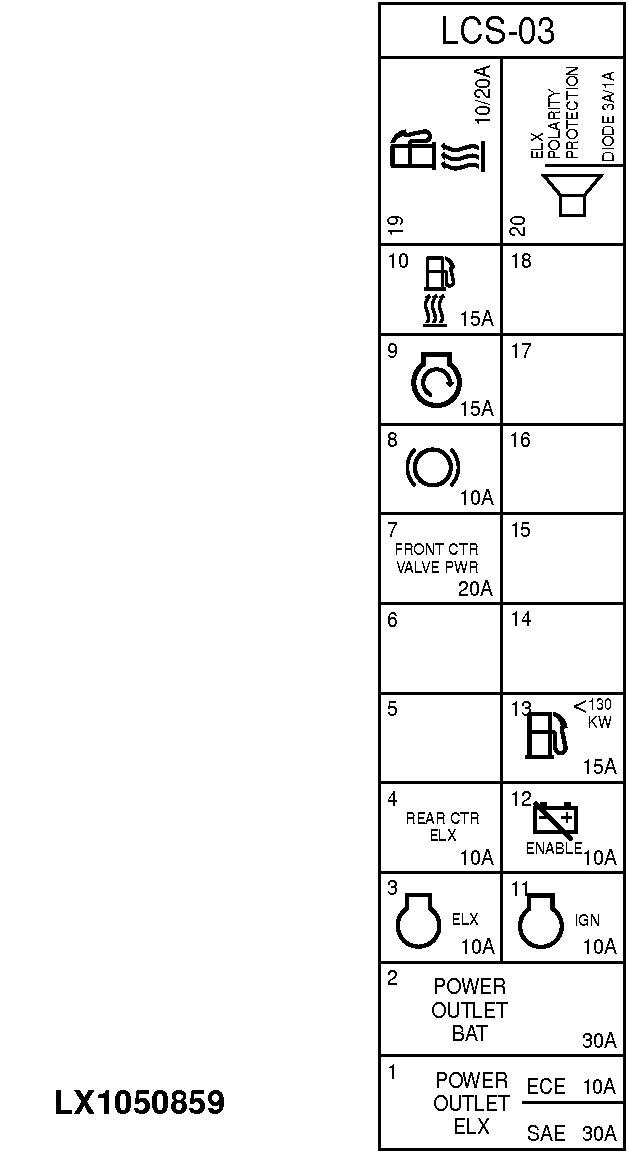

F03LCS - Fuses (LCS) with PowrQuad™ transmission - (on tractors 6170R to 6210R)
LX1050859-UN-19OCT10
|
Fuse no. |
Capacity (amps) |
Consumer |
|---|---|---|
|
F03LCS/01 |
30 amps 10 amps |
3-terminal socket, power outlet strip, 7-terminal socket (SAE) 3-terminal socket, power outlet strip (ECE) |
|
F03LCS/02 |
30 amps 30 amps |
3-terminal socket, power outlet strip, 7-terminal socket (SAE) 3-terminal socket, power outlet strip (ECE) |
|
F03LCS/03 |
10 amps |
Engine control unit ECU, immobilizer control unit |
|
F03LCS/04 |
10 amps |
Rear chassis control unit |
|
F03LCS/05 |
- |
Not used |
|
F03LCS/06 |
- |
Not used |
|
F03LCS/07 |
20 amps |
Power supply of front chassis control unit (solenoid valves, E-ICV stepper motors) |
|
F03LCS/08 |
10 amps |
Sensor unit for brake pedal |
|
F03LCS/09 |
15 amps |
Ignition switch |
|
F03LCS/10 |
15 amps |
Fuel preheater |
|
F03LCS/11 |
10 amps |
Engine control unit ECU |
|
F03LCS/12 |
10 amps |
Relay for battery cut-off switch |
|
F03LCS/13 |
15 amps |
Fuel pump (engines under 177 PS / 130 kW; not for tractor models 6170R, 6190R and 6210R) |
|
F03LCS/14 |
- |
Not used |
|
F03LCS/15 |
- |
Not used |
|
F03LCS/16 |
- |
Not used |
|
F03LCS/17 |
- |
Not used |
|
F03LCS/18 |
- |
Not used |
Relays (LCS) with PowrQuad™ transmission - (on tractors 6170R to 6210R)
LX1050849-UN-19OCT10
|
Relay no. |
Capacity (amps) |
Designation |
Relay no. |
Capacity (amps) |
Designation |
|---|---|---|---|---|---|
|
K01LCS/19 |
10/20 amps |
Not used |
K04LCS/01 |
20/40 amps |
Relay for 3-terminal socket, power outlet strip, 7-terminal socket (SAE) Relay for 3-terminal socket, power outlet strip (ECE) |
|
K01LCS/20 |
10/20 amps |
Relay for GreenStar™ (AMS) |
K04LCS/02 |
- |
Not used |
|
K04LCS/03 |
- |
Acoustic alarm |
|||
|
K02LCS/19 |
- |
Not used |
K04LCS/04 |
20/40 amps |
Relay for power supply to accessories (ACC1) |
|
K02LCS/20 |
- |
Not used |
|||
|
K05LCS/01 |
20/40 amps |
Relay for power supply to electronics (ELX) |
|||
|
K03LCS/19 |
10/20 amps |
Fuel preheater relay |
K05LCS/02 |
- |
Not used |
|
K03LCS/20 |
1 amp |
Diode for power supply for electronics |
K05LCS/03 |
- |
Connector for come-home mode |
|
K03LCS/20 |
3 amps |
Diode for acoustic alarm |
K05LCS/04 |
20/40 amps |
Relay for power supply to accessories (ACC2) |
|
OULXA64,000268C-19-20120301 |
