iTEC™ - Available Functions and Possible Operations

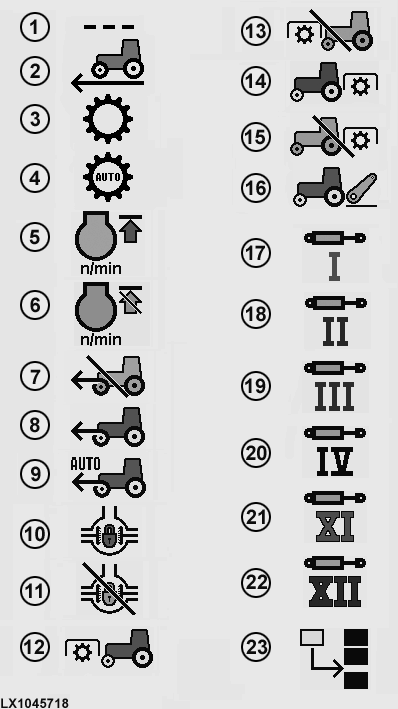

LX1045718-UN-26JUL10

List of Available Functions

Available functions
	Function	Description
1	Delete current step
2	Maximum travel speed	Set maximum travel speed. With AutoPowr/IVT and DirectDrive transmissions only.
3	Gear	Preselect gear. With PowrQuad, AutoQuad and DirectDrive transmissions only.
4	Automatic gear shift	Automatic gear shifting up to the highest gear selected. On AutoQuad transmission only.
5	FieldCruise ON	Set engine to maximum rpm.
6	FieldCruise OFF
7	Front-wheel drive OFF
8	Front-wheel drive ON
9	Front-wheel drive AUTO
10	Differential lock ON
11	Differential lock OFF
12	Front PTO ON
13	Front PTO OFF
14	Rear PTO ON
15	Rear PTO OFF
16	Rear hitch	Raise (e), lower (f), fast lower (g)
17	Selective control valve I (rear)	Extend (a), retract (b), float1 (c), cancel (d)
18	Selective control valve II (rear)	Extend (a), retract (b), float1 (c), cancel (d)
19	Selective control valve III (rear)	Extend (a), retract (b), float1 (c), cancel (d)
20	Selective control valve IV (rear)	Extend (a), retract (b), float1 (c), cancel (d)
21	Selective control valve XI (front)	Extend (a), retract (b), float1 (c), cancel (d)
22	Selective control valve XII (front)	Extend (a), retract (b), cancel (d)
23	Insert a function after the current step and move all subsequent functions down by one step.

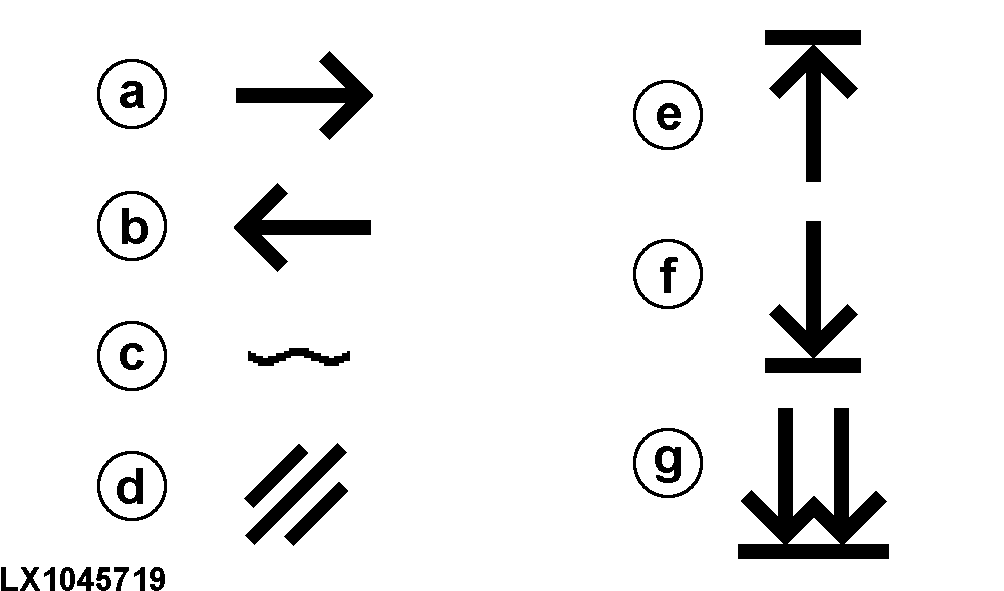

LX1045719-UN-16AUG10

Possible Operations

Possible Operations
a	Extend	Cylinder of selective control valve
b	Retract	Cylinder of selective control valve
c	Float position	Cylinder of selective control valve
d	Cancel	Cylinder of selective control valve
e	Raise	Hitch
f	Lower	Hitch
g	Fast lower	Hitch

IMPORTANT: Only the functions the tractor is equipped with will be displayed.
