Additional Functions for Mechanical Selective Control Valves

LX1045768-UN-11JAN11

Transport Lock

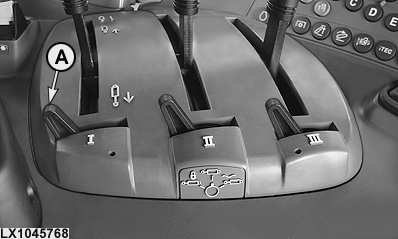

Lever (A) is used to lock the control levers for each selective control valve in neutral (transport lock), to release them for all functions or to lock them in float position.

IMPORTANT: Use levers (A) to lock the control levers when driving on roads and whenever the control levers are in neutral because they are not required.

Lift Rate

LX1045800-UN-22DEC10

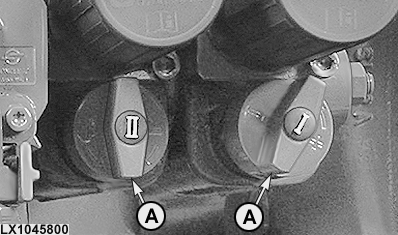

Flow control valves (A) can be used to regulate the rate at which hydraulic cylinders extend and retract (raise and lower). When lowering, make sure that the SCV control lever is NOT moved to float position.

IMPORTANT: Full extension and retraction of a hydraulic cylinder should require more than 1.5 seconds. Faster speeds may cause damage.
