Hitch Remote Control

LX1045813-UN-25JAN11

LX1045807-UN-24JAN11

A - Hitch Control

B - Raise/Lower Switch

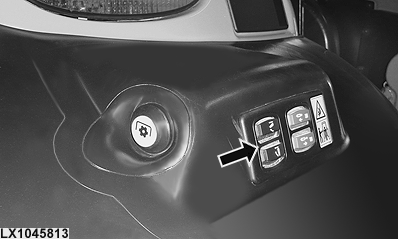

These switches allow the hitch to be operated from the fender.

For safety reasons, the hitch rises and drops at a slower rate. The height and depth values are ignored.

Push upper switch - Raise implement

Push lower switch - Lower implement

NOTE: Once the fender control has been activated, the hitch is prevented from moving accidentally. To prepare the hitch for operation again, either:

• move hitch control (A) to the position that corresponds to the position of the draft links,
• move control (A) to one of the end positions, or
• actuate raise/lower switch (B).
