Hitch - Transporting Mounted Implements

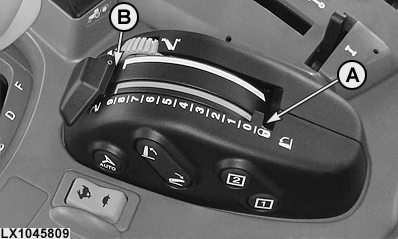

LX1045809-UN-24JAN11

A - Implement without Wheels

B - Implement with Wheels

Raise mounted implement fully by pulling the hitch control lever as far as it will go to the rear (beyond 0) (A).

For a towed implement, push the hitch control lever as far as it will go to the front (B).
