Hitch - Adjust Working Depth

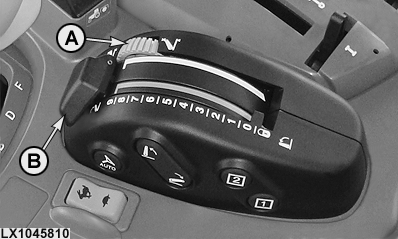

LX1045810-UN-24JAN11

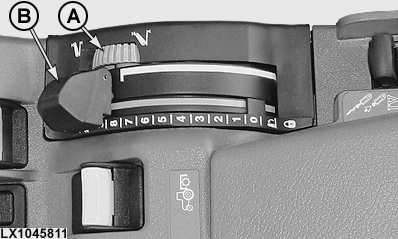

LX1045811-UN-24JAN11

A - Depth Control Stop

B - Depth-Setting Control

Push down depth control stop (A) and set the desired working depth.

After lifting the implement, the same working depth will be selected the next time the implement is lowered. This depth is indicated by resistance at depth-setting control (B).
