Hitch - Load/Depth Adjustment

LX1045789-UN-24JAN11

LX1045806-UN-25JAN11

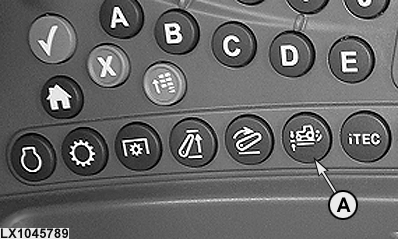

Use button (A) to select the page for load/depth adjustment.

On that page, you can set the hitch between load control and depth control.

The positions have the following meanings:

• 0 = Depth control
• over 0 but less than 5 = Mixed control
• 5 = Max. load control

CAUTION: Before connecting implements to the three-point hitch, position 0 (depth control) must be selected to prevent unintentional raising or lowering of the hitch.

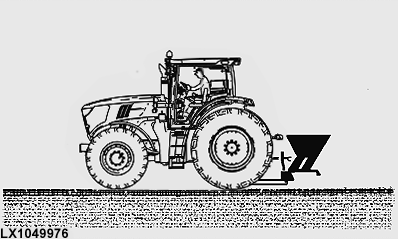

0 Depth Control

LX1049976-UN-17MAY11

With load/depth control in this position, the implement is held at the selected position.

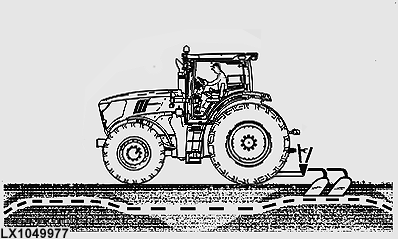

Over 0 but less than 5 Mixed Control

LX1049977-UN-18MAY11

The intermediate positions of the load/depth control allow the effects of depth control and/or load control to be infinitely varied as the ground conditions require.

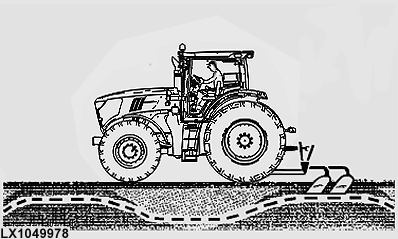

5 Max. Load Control

LX1049978-UN-17MAY11

With load/depth control in this position, the implement is raised as resistance (soil density) increases and lowered as resistance decreases.
