Hitch - Float Position

LX1045812-UN-24JAN11

LX1049979-UN-18MAY11

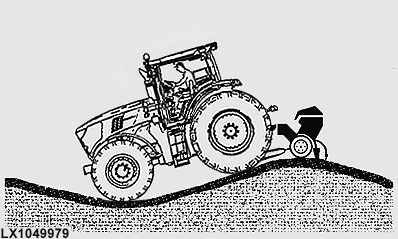

In float position (for implements with gauge wheel), implement can move freely up and down to follow ground contours independently of the tractor.

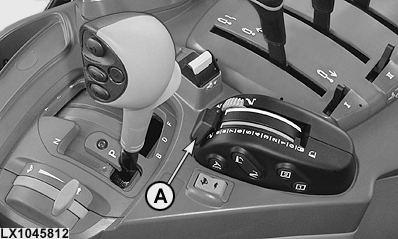

Move hitch control (A) all the way forward to obtain the float position.
