Attach Three-Point Hitch Mounted and Drawn Implements

LX1045816-UN-25JAN11

LX1045806-UN-25JAN11

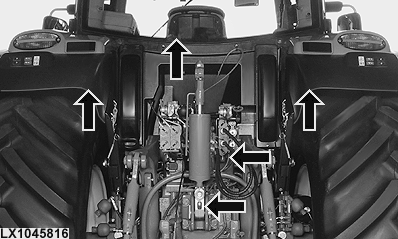

Be sure not to damage exposed parts of cab (see arrows) or other tractor components when attaching three-point hitch mounted or drawn implements.

CAUTION: Do not stand between tractor and implement unless the park lock is already engaged.

IMPORTANT: When attaching three-point hitch mounted or drawn implements for the first time, conduct a trial to ensure that implement will not damage cab or other tractor components in any position. With hitch-mounted implements, pay attention to the highest lift position; with drawn implements, be careful when turning sharply.

Also comply with instructions under Hydraulic Center Link, where applicable.

If a swinging drawbar is installed, set it in the front, short position. The swinging drawbar can also be swung to the right or left and secured there.

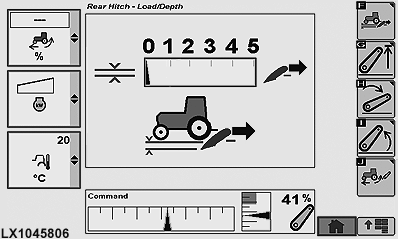

When attaching an implement, first make sure that load/depth control is set to 0.

IMPORTANT: Do NOT let the draft links or lift links come into contact with the tires or other tractor components. The gap between lift links and tires can be increased by installing the lift links in the front holes of the draft links.

When draft links are raised (even if no implement is attached), the hydraulic or mechanical stabilizer bars must be locked.
