Stabilizer Bar (If Equipped)

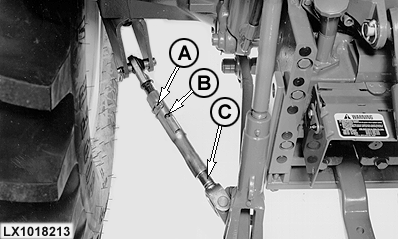

LX1018213-UN-24OCT97
The bar can be adjusted to suit any category by means of
pin (A) and/or threaded rod (B). Alternative bolt position (C) also
alters the category. The different categories are marked on the threaded
rod by grooves.

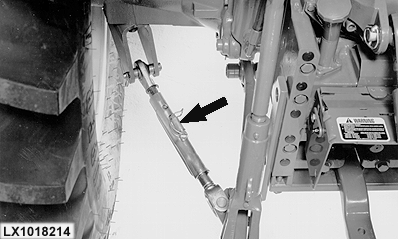

LX1018214-UN-24OCT97
If pin (A) is not required (it must be removed to allow the
draft links to sway), it can be stored in the tubular retainer.
|
|
OULXA64,00026E9-19-20110121
|
|
