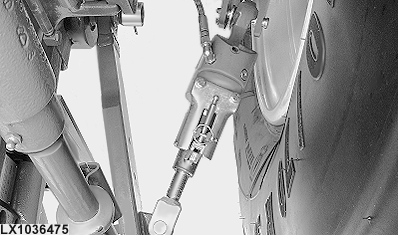

Hydraulic Stabilizer Bars (If Equipped)

LX1036475-UN-23JAN06

LX1046228-UN-22JUN11

LX1045821-UN-25JAN11

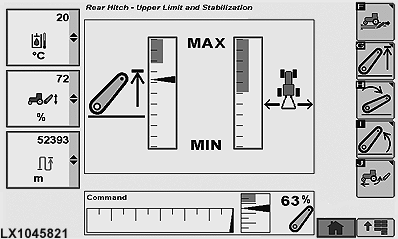

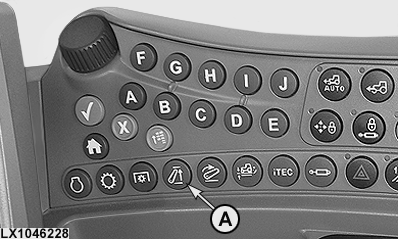

These bars operate automatically. Press button (A), and on the screen set the height from which the stabilizer bars are to be locked.

The stabilizer bars can be locked at any desired height.

IMPORTANT: Do NOT let the draft links or lift links come into contact with the tires or other tractor components. When draft links are raised (even if no implement is attached), the hydraulic or mechanical stabilizer bars must be locked.
