AutoPowr — Set Speeds, Guidelines and Examples

RXA0053043-UN-26APR01

Example 1

RXA0053045-UN-26APR01

Example 2

RXA0053049-UN-26APR01

Example 3

RXA0053047-UN-26APR01

Example 4

The maximum speed in band 1 is always the minimum speed in band 2. This means that when changing the band, there is no change in speed.

NOTE: F1 refers to Forward mode, Set Speed in speed band 1. F2 refers to Forward mode, Set Speed in speed band 2.

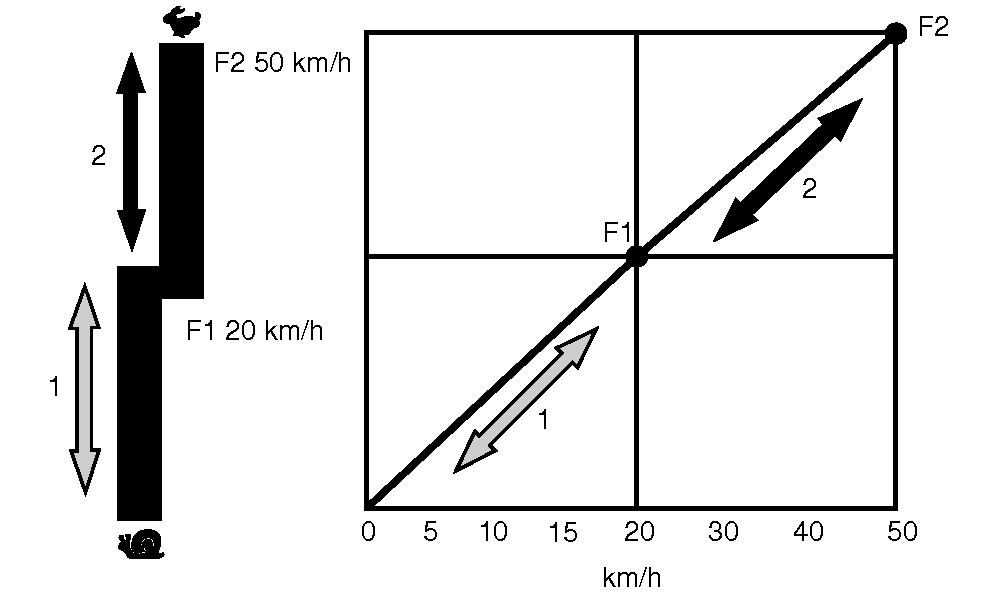

Example 1: Maximum Forward Set Speeds are selected for each speed band.

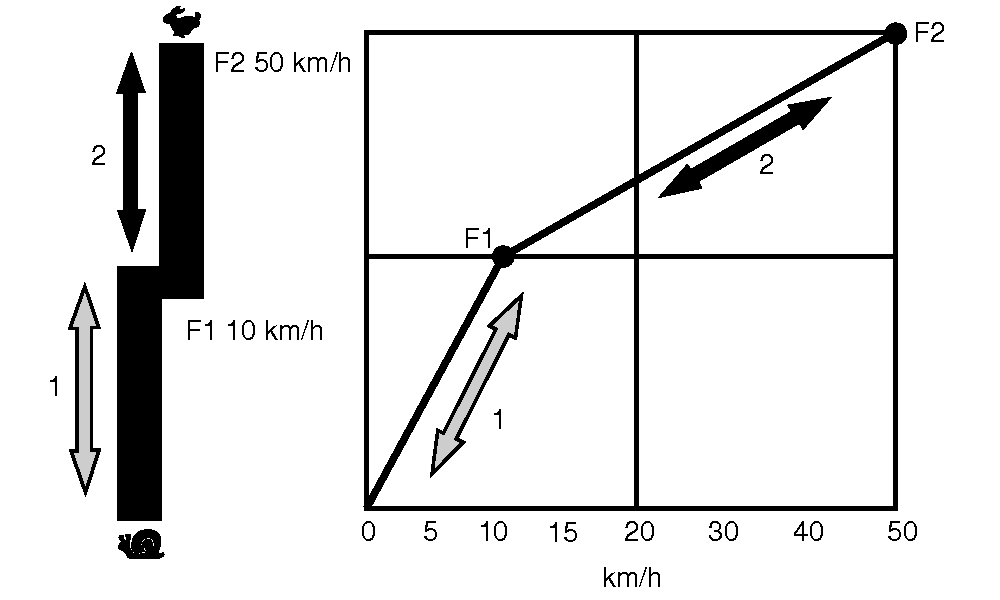

Example 2: Value of Set Speed 1 has been reduced to 10 km/h (6 mph). Set Speed 2 value has not been changed, but the lower portion of speed band 2 has automatically decreased to meet the top end of speed band 1.

NOTE: Actual set speed increase or decrease will be at least 10% of the adjusted speed band, and can range up to 12.5%. Ten percent is used in illustrations of Examples 3 and 4, and can actually differ by as much as 2,5% of the speeds shown.

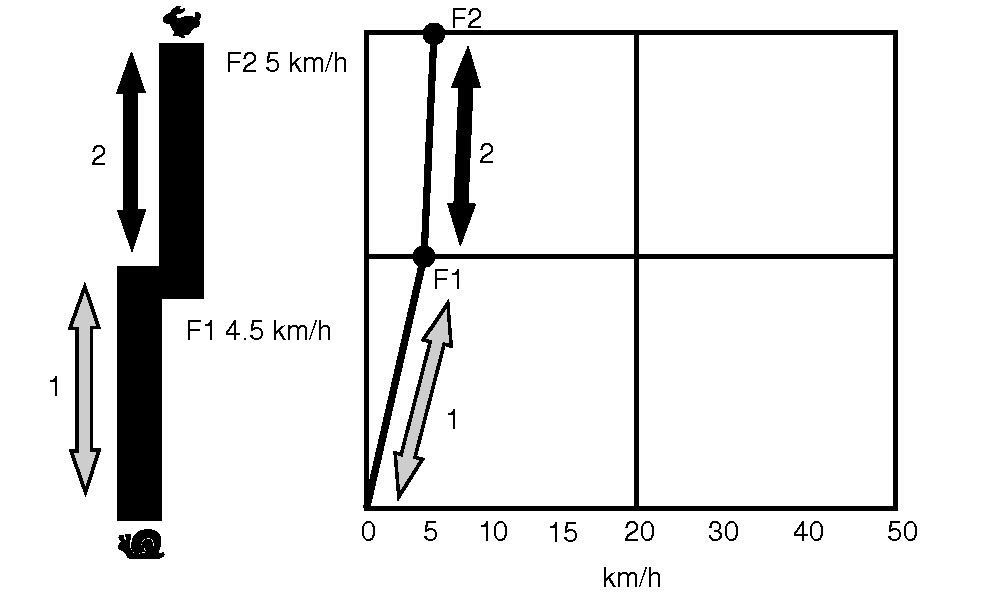

Example 3: Set Speed 2 has been reduced to 5 km/h (3 mph). Set Speed 1 automatically decreases to 4.5—4.3 km/h (2.8—2.7 mph), 10—12.5% below the new value of Set Speed 2.

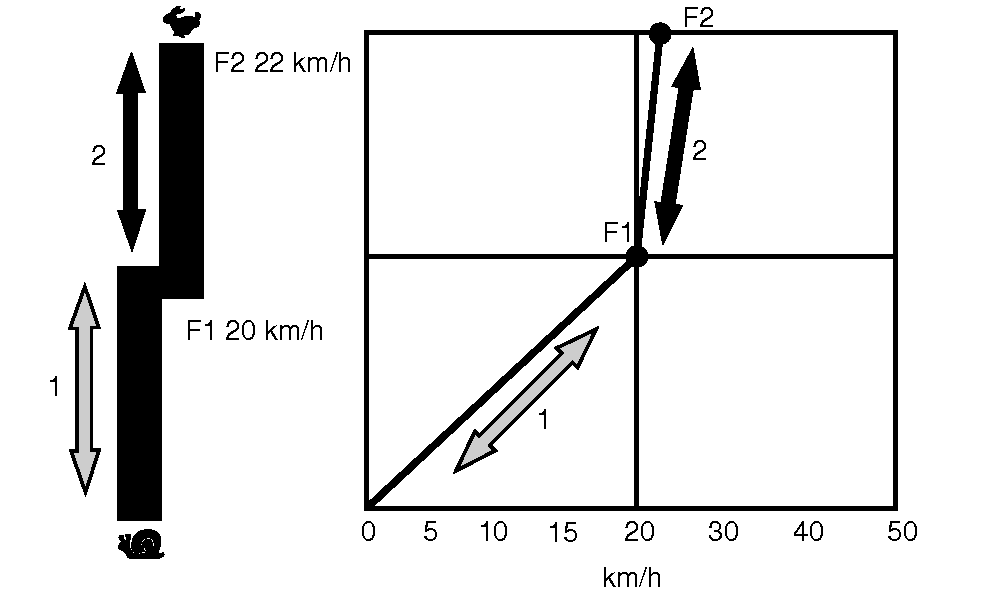

Example 4: Set Speed 1 has been increased to 20 km/h (12.4 mph), which is higher than the value of Set Speed 2. Set Speed 2 will automatically increase to 22—22.5 km/h (13.7—14.0 mph), 10—12.5% above the new value of Set Speed 1.
