AutoPowr™ — Operating on Hillsides in Slippery Conditions

1.
   LX1053228-UN-27JUN11


   LX1045833-UN-28JAN11

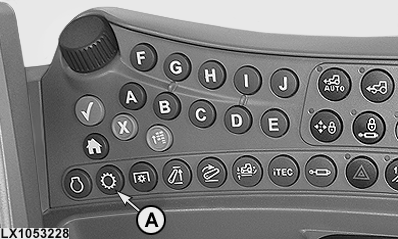

   Press button (A) to access the transmission page.

---

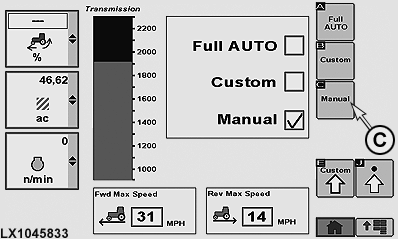

2. Press softkey (C) and activate the Manual operating mode. The relevant check box is activated.

   The tractor performs as though equipped with a normal transmission and reacts to controls. No Fuel Economy or Load Control functions are active in this mode.

CAUTION: Personal injury may result if control of the tractor is lost while operating on hillsides. The tractor's wheels may lock on slippery slopes, causing skidding. Observe the following precautions:

• Select a travel speed that ensures safe operation on hillsides.
• Do not use the speed control lever to decelerate too quickly.

Braking of tractor and trailer (in particular when driving downhill)¹:

IMPORTANT: It is essential to set AutoClutch sensitivity correctly; see "AutoPowr™ — Settings" in this Section.

To brake a hitched-up unit (tractor plus trailer) under control, a stretching of the hitch-up is necessary for stable driving characteristics.

When there are speed reductions that are commanded by the driver, there may be strong braking characteristics by the tractor. These braking characteristics may be caused by the gear transmission and the engine and may be quite intensive at slow travel speeds.

To keep the hitched-up unit stretched in this situation, be sure to increase the engine speed to 1200 rpm at least and that the braking is primarily done by the tractor's main brake. As an alternative, the clutch pedal can be pressed at the same time as the main brake is pressed. In both cases, the trailer brake is actuated sufficiently to stretch the hitched unit. This provides the best possible driving stability during stopping or when slowing down for changing directions.
