Select Standard Speed of Rear PTO (Shiftable PTO)

LX1046225-UN-22JUN11

LX1045844-UN-04FEB11

LX1045845-UN-04FEB11

1 - PTO Button

2 - Activated Standard Speed

3 - Indicator Lights for PTO Speeds

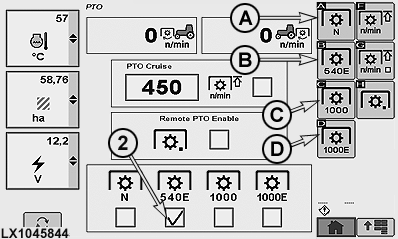

A - Softkey, PTO Speed Neutral

B - Softkey, PTO Speed 540E

C - Softkey, PTO Speed 1000

D - Softkey, PTO Speed 1000E

CAUTION: Before engaging the PTO, make sure that selected PTO speed is correct for the implement attached. Incorrect speed could result in severe damage to the implement.

Danger of accidents!

The PTO is engaged and disengaged as described under Operating Power Take-Offs. The PTO must be disengaged to select standard PTO speed.

Press button (1) and select the desired speed on the PTO page (e.g. 540E). Select relevant softkey (A) to (D) to activate the desired PTO speed. The display window for the activated PTO speed (2) becomes active.

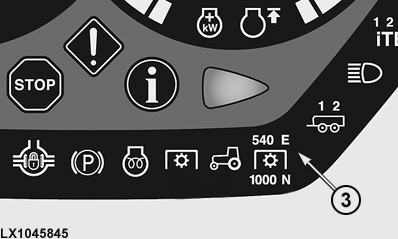

The selected PTO speed is indicated by lights (3).

CAUTION: The engine must be shut off when an implement is being connected.
