EasyGuide Center Link (if equipped)

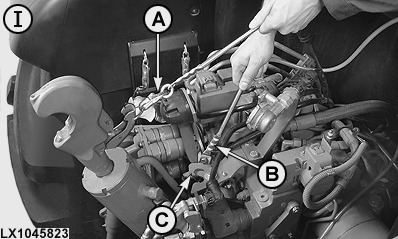

LX1045823-UN-14FEB11

I - Actuated from Cab

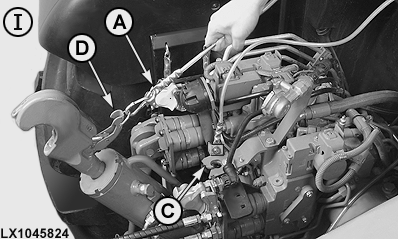

LX1045824-UN-14FEB11

I - Actuated from Cab

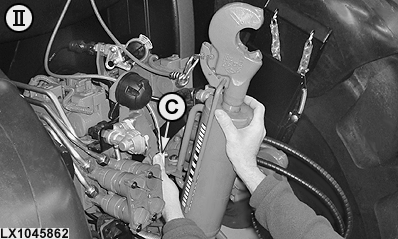

LX1045862-UN-14FEB11

II - Actuated from Ground

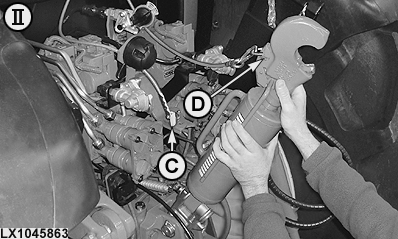

LX1045863-UN-14FEB11

II - Actuated from Ground

A - Control Cable (Center Link)

B - Control Cable (Locking Pawl)

C - Locking Pawl (Bracket)

D - Locking Pawl (Center Link)

EasyGuide Center Link is a system that enables its user to engage and disengage the hydraulic center link from the cab and from the ground.

IMPORTANT: Take care, the center link is heavy and can damage other components if it tips over.

IMPORTANT: Make sure that the hydraulic center link is always fully retracted and locked in locking pawl (C) on the center link bracket when work is completed.

I - EasyGuide Center Link, actuation from cab

1. To do this, pull the center link using control cable (A) and hold on to the cable.

2. Use control cable (B) to unlock locking pawl (C); using both hands, move the center link with control cable (A) to desired position and let it engage in the implement.

   IMPORTANT: Make sure that the center link is attached securely and that locking pawl (D) has engaged properly.

3. To separate the center link from the implement, lower the implement, use both hands and control cable (A) to unlock locking pawl (D) and pull the center link and let it engage in locking pawl (C) on the center link bracket.

II - EasyGuide Center Link, actuation from ground

1. To do this, press the center link into the center link bracket and unlock locking pawl (C).

2. Use both hands to move the center link to desired position and let it engage in the implement.

   IMPORTANT: Make sure that the center link is attached securely and that locking pawl (D) has engaged properly.

3. To separate the center link from the implement, lower the implement, unlock locking pawl (D) and using both hands let the center link engage in locking pawl (C) on the center link bracket.
