Engage the Differential Lock

LX1036281-UN-17AUG05

CAUTION: Do not attempt to steer the tractor with the differential lock engaged.

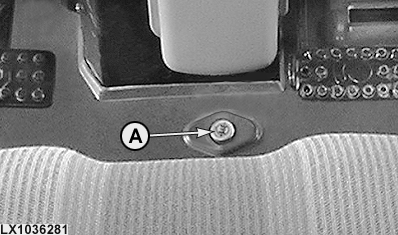

If wheel slip varies greatly between rear wheels, engage differential lock by means of button (A) (only if the difference in speed is not too high). To disengage the differential lock, depress brake pedal or actuate button (A) again.

If tractor speed exceeds 23.3 km/h (14.5 mph) with the differential lock engaged, the differential lock switches off automatically.

Differential lock is not re-engaged automatically when speed falls below 23.3 km/h (14.5 mph); this must be done manually by the operator.
