Hydraulic Pick-Up Hitch (Electrically Actuated)

LX1046200-UN-14JUN11

LX1045867-UN-15FEB11

LX1045868-UN-15FEB11

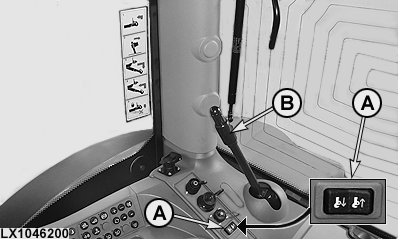

A - Switch

B - Release Lever

1 - Hitch in Position for Attaching Trailer

2 - Hitch in Stored Position

This pick-up hitch can be operated via the rear hitch and switch (A).

1. Raise the draft links as high as they go and use switch (A) to retract the hitch hook fully (press the top part of the switch).

2. Pull release lever (B) and hold it until the hitch hook has moved from the stored position (lever remains in open position).

3. Use switch (A) to extend the hitch hook fully (press the bottom part of the switch).

4. Lower draft links/hitch hook to desired height.

5. Raise draft links to engage hitch hook in trailer towing eye, then continue to raise the hitch fully.

6. Use switch (A) to retract the hitch hook fully until it is fully locked (lever (B) returns to its starting position).

7. Lower the draft links.

8. Check that the hitch is locked correctly. It will not lower when the draft links are lowered and not extend when the switch is operated.

IMPORTANT: If the release lever is hard to operate or locking the hitch hook is not performed automatically (step 2 or step 6 above), have your John Deere dealer check the setting of the lift links or of the pick-up hitch hook.

CAUTION:

LX1045869-UN-15FEB11

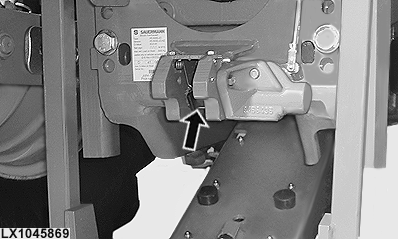

With the hitch lowered, NEVER reach into the receiver opening (see arrow). Danger of injury!

NOTE: Pick-up hitch components that are subject to wear must be checked every 250 hours (see Service / Every 250 Hours). Replace, if necessary.

Maximum permissible static vertical loads and towable loads are stated in the Specifications section.

LX1045870-UN-15FEB11

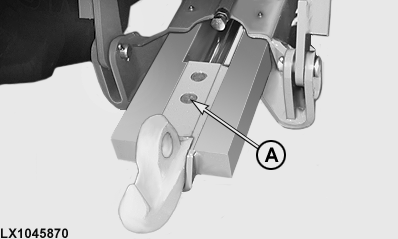

The part not required can be stored in a holder on the side-frame.
