CommandCenter™ - Input Fields

LX1045886-UN-24FEB11

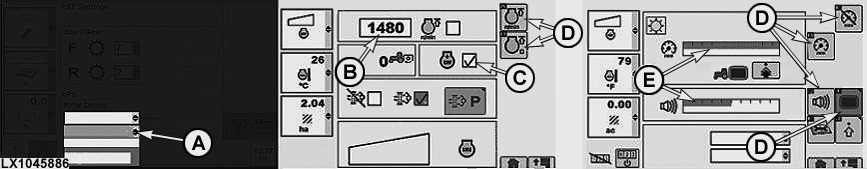

Example of CommandCenter™ Drop-Down Boxes, Check Boxes, Input Boxes, Softkeys, and Bar Graphs

LX1045880-UN-18FEB11

A — Drop-Down Boxes

Drop-down boxes have lists with numeric values or texts. By pressing the arrows on the right side, the operator can move up or down in the pre-populated lists to select a desired value or function.

Highlight drop-down box, list will appear then make selection from options available.

To close drop-down box without making a selection, select Cancel button. List will close and original value will remain.

B — Input Box

Input box has a border with a numeric value or text. This allows the operator to select and enter new values or text.

NOTE: If using thumb wheel, the faster thumb wheel is rotated, the faster values will incrementally change. Rotating thumb wheel forward increases value and rotating thumb wheel rearward decreases value.

To change a value, highlight input box, then make selection.

If there is a large range of values, a numeric key pad will appear, allowing selection of each digit.

C — Check Box

The function controlled by a check box will toggle on or off depending if box is checked or left unchecked respectively.

D — Softkeys

Select softkeys to activate a prescribed function or navigate to a page.

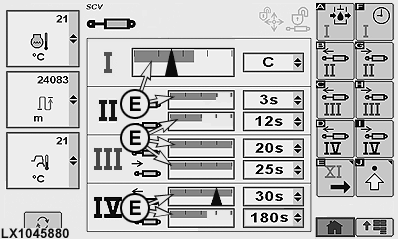

E — Bar Graph

To change a value, highlight the bar graph and enter the desired value or make a selection.
