CommandCenter™ - Viewing Basic Diagnostic Readings

RXA0098156
RXA0098156-UN-07NOV08

Menu Button

RXA0103915
RXA0103915-UN-14JUL10

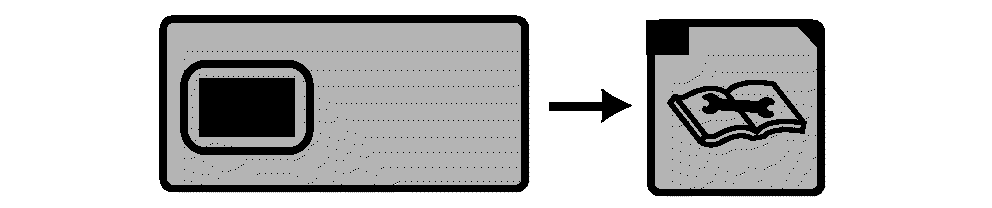

Display → Diagnostics

Basic display diagnostics such as operating voltage, and CAN bus status can be found on the Diagnostics Readings Page.

This information maybe requested by your John Deere™ dealer to aid diagnostics.

  1. Press the menu button.

  2. Select a display.

  3. Select Diagnostics softkey.

  4. System diagnostics are located on Display Settings Readings page.

John Deere is a trademark of Deere & Company

OULXA64,0002740-19-20120622
