CommandCenter™ - Message Center

RXA0098156-UN-07NOV08

Menu Button

RXA0099746-UN-14JUL10

Message Center Page

RXA0106008-UN-14JUL10

Message Center Page

Press the menu button.

Select Message Center.

Message Center is used to access detailed diagnostic information and to manually initiate reprogramming sessions.

Message Center can also display detailed diagnostic information such as Control Unit Information and CAN Bus Information, used by your John Deere ™ Dealer for advanced troubleshooting.

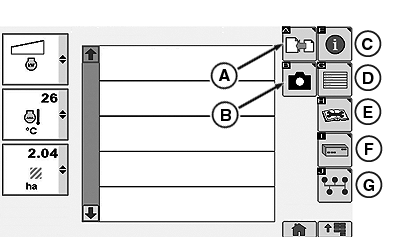

Softkeys are listed below:

• A — Message Center Reprogramming Page
• B — Transfer Debug Files
• C — Messages
• D — Diagnostic Addresses
• E — Trouble Codes
• F — Control Unit Information
• G — Bus Information
