CommandCenter™ - Accessing Video Camera Capability

Avoid Backover Accidents

RXA0109491
RXA0109491-UN-05AUG10

Avoiding Backover Accidents

LX1045613
LX1045613-UN-07SEP10

Video Socket

F - Video Socket

CAUTION: To avoid possible injury or death to operator or others, always remain alert and aware of surroundings when operating the machine.

Do not rely on a camera to determine if personnel or obstacles are behind the machine, or to avoid collisions.

The camera may be limited by many factors including maintenance practices, environmental conditions, and operating range.

CAUTION: Before moving machine, be sure that all persons are clear of machine path. Give audio warning by sounding horn. Turn around and look directly for best visibility. Use mirrors to assist in checking all around machine. Keep windows and mirrors clean, adjusted, and in good repair. Use a signal person when backing if view is obstructed or when in close quarters.

IMPORTANT: Avoid damage to equipment.

  • Mount camera in a sturdy and secure location.
  • Understand the camera’s field of view.
  • Keep the camera properly serviced.
  • Keep camera lens clean.

IMPORTANT: Make sure you understand how the film sequence is relayed, i.e. whether it is "mirror-image" or as if the operator is looking to the rear.

Tractors are equipped with a socket (F) for a video camera.

NOTE: Camera placement is limited to wire length and safety considerations for your camera.

IMPORTANT: Avoid damaging camera by mounting camera securely to equipment and in a location in which camera will not be pinched, crushed, kicked, or knocked off.

RXA0110766
RXA0110766-UN-09SEP10

Menu Button → Video Icon

RXA0107758
RXA0107758-UN-02AUG10

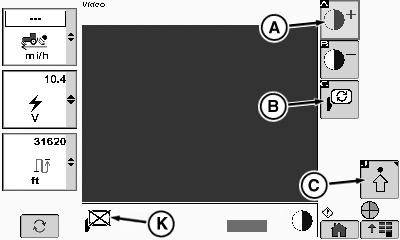

Video Page

RXA0107759
RXA0107759-UN-02AUG10

Video Settings Page

RXA0107760
RXA0107760-UN-04JUN10

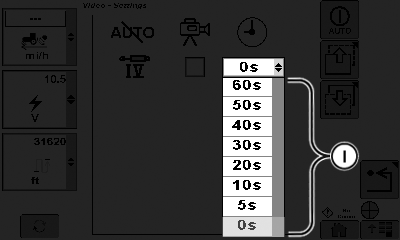

Extended Time Drop-Down Box Options

A - Increase Contrast Softkey

B - Softkey for Mirror Image

C - Advanced Softkey

D - Trigger Options

E - Trigger Option Check Box

F - Extended Time Drop-Down Box

G - Previous Page Softkey

H - Next Page Softkey

I - Extended Time Options

J - Back Softkey

K - Mirror Indicator

  1. Connect your camera into four-pin plug, route wire and mount camera at desired location.

  2. Install back panel on tractor.

  3. Select the video icon from the CommandCenter™ menu.

  4. Use plus/minus softkeys (A) to adjust focus of video camera.

  5. The operator can select either standard view or mirror image. Use mirror-image softkey (B) to toggle between views.

    If mirror image is on, mirror indicator (K) is displayed; if mirror image is off, the indicator displays an X as shown.

    NOTE: Selecting mirror softkey (B) allows operator to choose either a mirror image or a standard view of what the camera is viewing.

  6. Select advanced settings softkey (C).

    NOTE: Trigger is an action which will activate camera to display video. Operator has the ability to set extend time from 5 seconds up to 60 seconds at which video page displays. Example: If hitch is the trigger and extend time is set to 0, video page activates precisely when hitch is activated and video activation ceases immediately when hitch movement is complete. If extended time is set to 60 seconds, video page activates at moment when hitch is activated, then remains active 60 seconds after hitch movement is complete.

    Up to six trigger options are displayed per page. If more than six options are available, select page up softkey (G) or down softkey (H) to view additional options.

  7. Select desired trigger from options (D) available on left side of page and select check box (E) for appropriate trigger.

  8. Select drop-down box (F) in page right column to select desired extended time (I).

  9. Select Back softkey (J) to return to previous screen.
