Check the Manually-Operated Trailer Hitch for Wear

CAUTION: Parts that have reached or exceeded their wear limit must be replaced with new parts.

LX1031437
LX1031437-UN-24SEP03

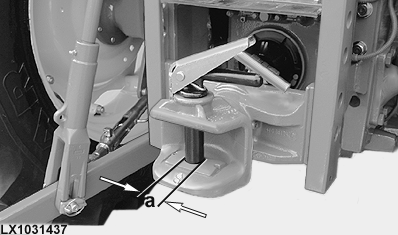

Check diameter (a) of the hitch pin.

ItemMeasurementSpecification
Hitch PinWear limit or diametermin. 29,0 mm min. 1.14 in.

LX1047989
LX1047989-UN-23SEP09

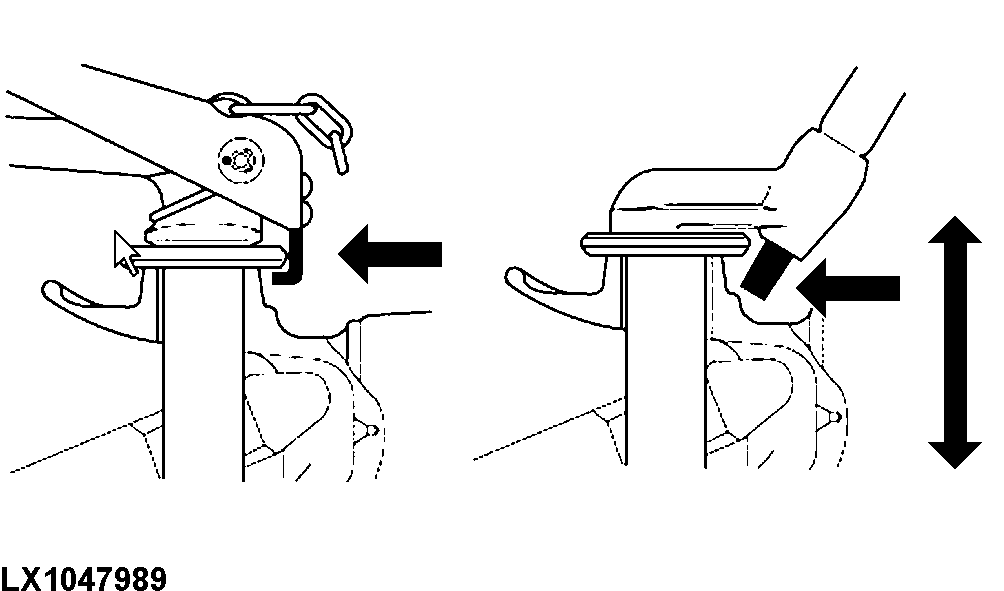

Check permissible vertical play of the hitch pin.

ItemMeasurementSpecification
Hitch PinPlaymax. 6 mm max. 0.24 in.

LX1031438
LX1031438-UN-24SEP03

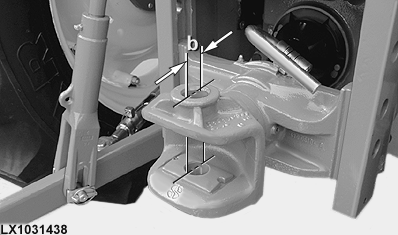

Check diameter (b) of the receiver hole.

ItemMeasurementSpecification
Top and bottom receiver holes (measured in direction of travel) Wear limit or diametermax. 35.0 mm (oval) max. 1.38 in. (oval)

LX1048786
LX1048786-UN-09DEC09

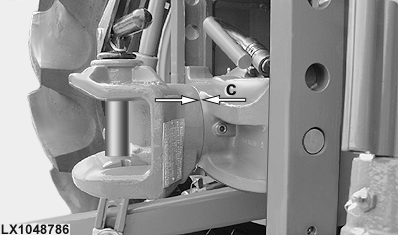

Determine play (c) between trailer hitch and receiver.

ItemMeasurementSpecification
Trailer Hitch and ReceiverPlaymax. 3.0 mm max. 0.12 in.

OULXA64,0002754-19-20110222
