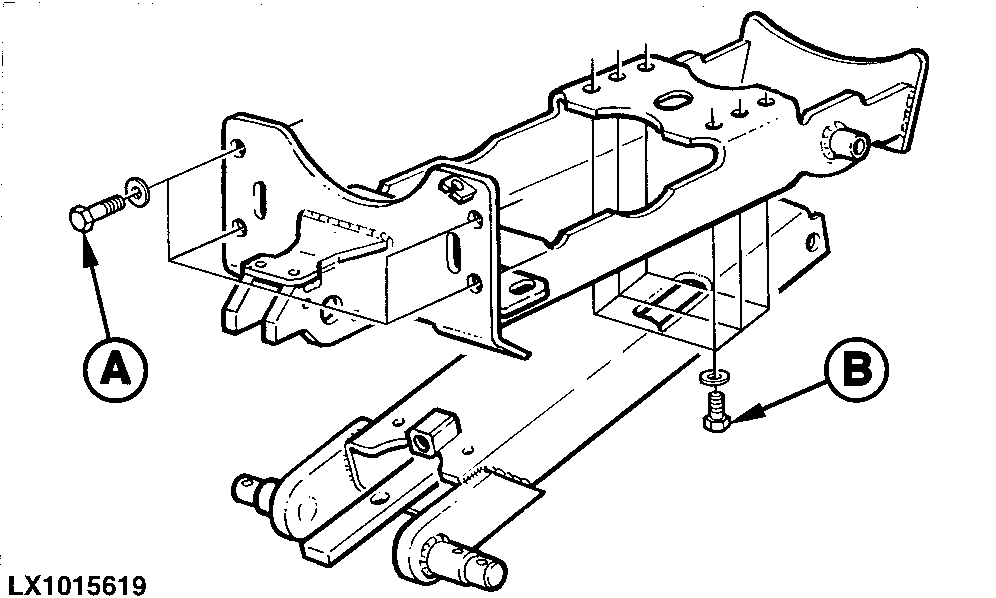

Pick-Up Hitch
LX1015619-UN-08JAN97
Check torques of attaching screws.
Tighten cap screws (A) to 450 Nm (330 lb.-ft.).
Tighten cap screws (B) to 265 Nm (190 lb.-ft.).
|
OULXA64,00027B7-19-20110609 |
Pick-Up Hitch
Check torques of attaching screws. Tighten cap screws (A) to 450 Nm (330 lb.-ft.). Tighten cap screws (B) to 265 Nm (190 lb.-ft.).
|
