CommandCenter™ - Displaying Engine Operating Hours

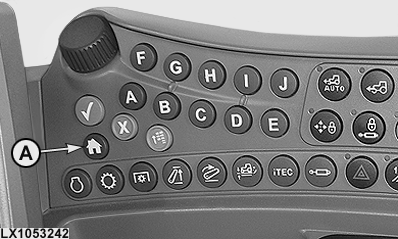

LX1053242-UN-06JUL11

Home Page Button

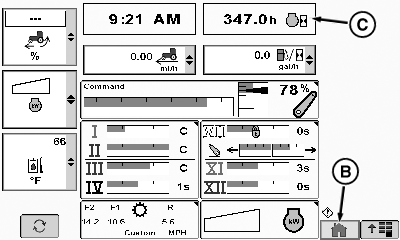

RXA0111701-UN-29NOV10

Default Home Page

A - Home Page

B - Home Page Softkey

C - Engine Operating Hours

Select Home Page (A) or Home Page Softkey (B).

Engine operating hours (C) are shown in the upper right corner of the screen.
