Operation and Entering the Diagnostic Addresses with CommandCenter™ (Customer Level)

Diagnostic addresses relevant to the customer are displayed here.

LX1051629-UN-22FEB11

LX1051263-UN-22FEB11

1 - CommandCenter™

2 - Button Panel

3 - Thumb Wheel (Highlighting and Setting Values)

4 - Enter Button (Confirming, Hiding, Saving and Starting)

5 - Menu Button

Access to the CommandCenter™ is achieved by means of the buttons and thumb wheel on the button panel.

1.
   LX1050866-UN-12OCT11

   Menu

   1 - Softkey for Message Center Page

   Press the menu button.

   NOTE: If any diagnostic trouble codes or informative messages are displayed on the CommandCenter™, keep pressing the enter button until all the diagnostic trouble codes and messages are hidden.

   Use the thumb wheel to highlight the softkey for message center page, then press the enter button.

   NOTE: Order of displayed icons can vary depending on vehicle configuration.

---




2.
   LX1050867-UN-12OCT11

   Message Center Page

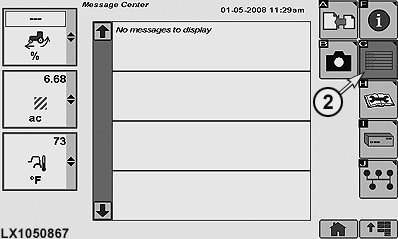

   G - Softkey for Diagnostic Addresses

   Use the thumb wheel to highlight the softkey for diagnostic addresses, then press the enter button.

---




3.
   LX1053337-UN-29NOV11

   Drop-Down Menu

   S - Drop-Down Menu

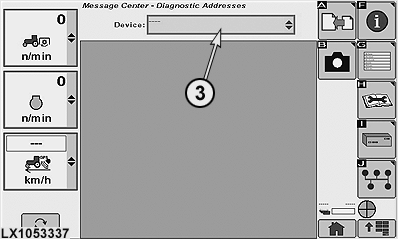

   Use the thumb wheel to highlight the softkey for drop-down menu, then press the enter button.

---




4.
   LX1051638-UN-23FEB11

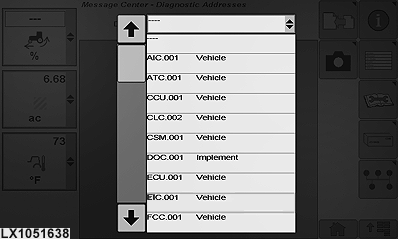

   Use the thumb wheel to highlight the desired control software, then press the enter button.

   The list can be moved up and down using the thumb wheel.

   NOTE: Control software list can vary depending on installed options.

---




5.
   LX1051636-UN-23FEB11

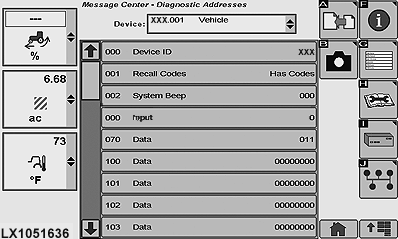

   Use the thumb wheel to highlight the desired address, then press the enter button.

---




6.
   LX1053338-UN-29NOV11

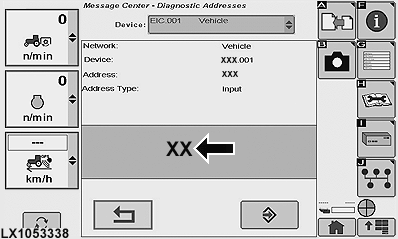

   4 - Save Softkey

   5 - Cancel Softkey

   The displayed value can only be changed to an input address.

   Use the thumb wheel to highlight the value, then press the enter button.

   Use the thumb wheel to set the value as appropriate, then press the enter button.

   To save, use the thumb wheel to highlight the save softkey, then press the enter button.

   To cancel or exit, use the thumb wheel to highlight the cancel softkey, then press the enter button.

   Customization

   Use the values from the table and enter these values into the relevant input address to activate or deactivate the desired customizations.

   ATC 033 - Displayed Temperature, Configuration
   Display alternates every 10 seconds between desired temperature and ambient air temperature ..............	0
   Desired temperature displayed all the time (factory setting) ..............	1
   PTQ 167 - Deactivate or Activate Declutch Switch on Range Shift Lever
   Declutch switch on range shift lever deactivated ..............	0
   Declutch switch on range shift lever activated ..............	1

---
