Front-Wheel Tread Adjustment with Rims for 8 Positions - 6170R to 6210R

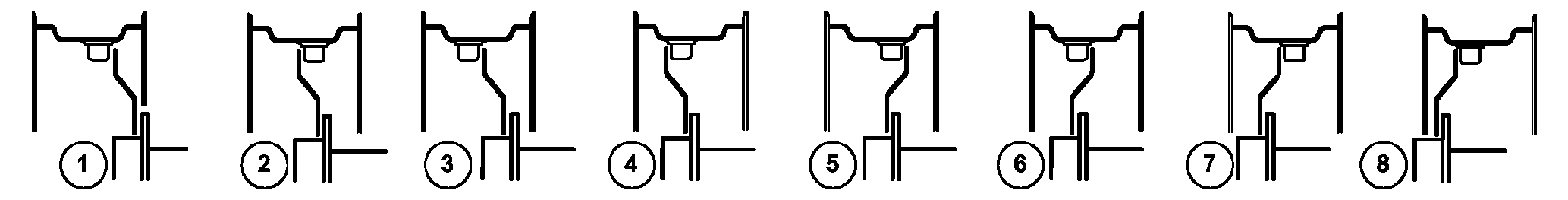

LX1056921-UN-21AUG13

	Tread width setting on delivery	Tread width setting (front wheels) Arrangement of rim and wheel disk
Tires:		1	2	3	4	5	6	7	8
16.9R30	1916 mm	2120 mm**	2016 mm	1916 mm	1812 mm	1720 mm	1616 mm	1516 mm*	1412 mm*
	(75.43 in.)	(83.46 in.)**	(79.37 in.)	(75.43 in.)	(71.34 in.)	(67.72 in.)	(63.62 in.)	(59.68 in.)*	(55.59 in.)*
18.4R30	1914 mm	2118 mm**	2014 mm	1914 mm	1810 mm	1718 mm	1614 mm*	1514 mm*	1410 mm*
	(75.35 in.)	(83.39 in.)**	(79.29 in.)**	(75.35 in.)	(71.26 in.)	(67.64 in.)	(63.54 in.)*	(59.61 in.)*	(55.51 in.)*
420/85R30	1916 mm	2120 mm**	2016 mm	1916 mm	1812 mm	1720 mm	1616 mm	1516 mm*	1412 mm*
	(75.43 in.)	(83.46 in.)**	(79.37 in.)	(75.43 in.)	(71.34 in.)	(67.72 in.)	(63.62 in.)	(59.68 in.)*	(55.59 in.)*
460/85R30	1914 mm	2118 mm**	2014 mm	1914 mm	1810 mm	1718 mm	1614 mm*	1514 mm*	1410 mm*
	(75.35 in.)	(83.39 in.)**	(79.29 in.)	(75.35 in.)	(71.26 in.)	(67.64 in.)	(63.54 in.)*	(59.61 in.)*	(55.51 in.)*
480/70R30	1916 mm	2120 mm**	2016 mm**	1916 mm	1812 mm	1720 mm	1616 mm	1516 mm*	1412 mm*
	(75.43 in.)	(83.46 in.)**	(79.37 in.)**	(75.43 in.)	(71.34 in.)	(67.72 in.)	(63.62 in.)	(59.68 in.)*	(55.59 in.)*
540/65R30	1916 mm	2120 mm**	2016 mm**	1916 mm	1812 mm	1720 mm	1616 mm*	1516 mm*	1412 mm*
	(75.43 in.)	(83.46 in.)**	(79.37 in.)**	(75.43 in.)	(71.34 in.)	(67.72 in.)	(63.62 in.)*	(59.68 in.)*	(55.59 in.)*
600/65R28	1880 mm	2156 mm**	2052 mm**	1880 mm	1776 mm	1756 mm	1652 mm*	1480 mm*	1376 mm*
	(74.02 in.)	(84.88 in.)**	(80.79 in.)**	(74.02 in.)	(69.92 in.)	(69.13 in.)	(65.04 in.)*	(58.27 in.)*	(54.17 in.)*
600/65R30	1878 mm	2154 mm**	2050 mm**	1878 mm	1774 mm	1754 mm	1650 mm*	1478 mm*	1374 mm*
	(73.94 in.)	(84.80 in.)**	(80.71 in.)**	(73.94 in.)	(69.84 in.)	(69.05 in.)	(64.96 in.)*	(58.19 in.)*	(54.09 in.)*
600/70R28	1878 mm	2154 mm**	2050 mm**	1878 mm	1774 mm	1754 mm*	1650 mm*	1478 mm*	— ***
	(73.94 in.)	(84.80 in.)**	(80.71 in.)**	(73.94 in.)	(69.84 in.)	(69.05 in.)*	(64.96 in.)*	(58.19 in.)*
* With AL180127 steering stop only ** Total vehicle width larger than 2.55 m; the regional road traffic licensing regulations have to be observed. *** Installation in this position is not allowed

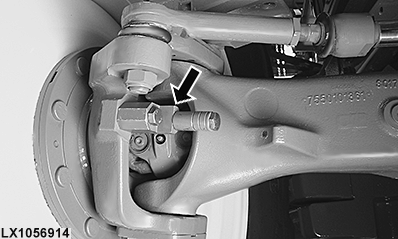

LX1056914-UN-27JUN13

* With AL180127 steering stop only

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 8 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).
