Rear Wheel Tread Adjustment with Rims for 16 Positions (Heavy-Duty Type) - Flanged Axle (6140R Tractor)

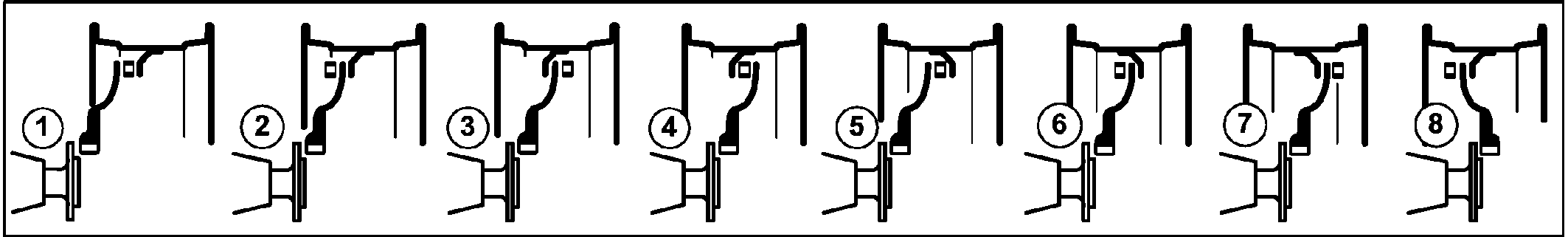

LX1053416-UN-16MAR12

Rear Wheel Tread Adjustment with Rims for 16 Positions (heavy-duty type) / positions 1 to 8

	Tread width setting on delivery	Tread width setting (rear wheels) Arrangement of rim and wheel disk
Tires:		1	2	3	4	5	6	7	8
520/85R42	1926 mm	2036 mm*	2006 mm	1956 mm	1926 mm	1832 mm	1802 mm	1752 mm	1722 mm
	(75.83 in.)	(80.16 in.)*	(78.98 in.)	(77.01 in.)	(75.83 in.)	(72.13 in.)	(70.94 in.)	(68.98 in.)	(67.80 in.)
580/70R42	1926 mm	2036 mm*	2006 mm*	1956 mm*	1926 mm	1832 mm	1802 mm	1752 mm	1722 mm
	(75.83 in.)	(80.16 in.)*	(78.98 in.)*	(77.01 in.)*	(75.83 in.)	(72.13 in.)	(70.94 in.)	(68.98 in.)	(67.80 in.)
620/70R42	1832 mm	2036 mm*	2006 mm*	1956 mm*	1926 mm	1832 mm	1802 mm	1752 mm	— **
	(72.13 in.)	(80.16 in.)*	(78.98 in.)*	(77.01 in.)*	(75.83 in.)	(72.13 in.)	(70.94 in.)	(68.98 in.)
650/65R42	1832 mm	2036 mm*	2006 mm*	1956 mm*	1926 mm	1832 mm	1802 mm	— **	— **
	(72.13 in.)	(80.16 in.)*	(78.98 in.)*	(77.01 in.)*	(75.83 in.)	(72.13 in.)	(70.94 in.)
650/75R38	1830 mm	2036 mm*	2006 mm*	1956 mm*	1926 mm	1832 mm	1802 mm	— **	— **
	(72.05 in.)	(80.16 in.)*	(78.98 in.)*	(77.01 in.)*	(75.83 in.)	(72.13 in.)	(70.94 in.)
710/70R38	1830 mm	2036 mm*	2006 mm*	1956 mm*	1926 mm*	1832 mm	1802 mm	— **	— **
	(72.05 in.)	(80.16 in.)*	(78.98 in.)*	(77.01 in.)*	(75.83 in.)*	(72.13 in.)	(70.94 in.)
* Total vehicle width larger than 2.55 m; the regional road traffic licensing regulations have to be observed. ** Installation in this position is not allowed

IMPORTANT: Comply with instructions on rear-wheel tread adjustment with rims for 16 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

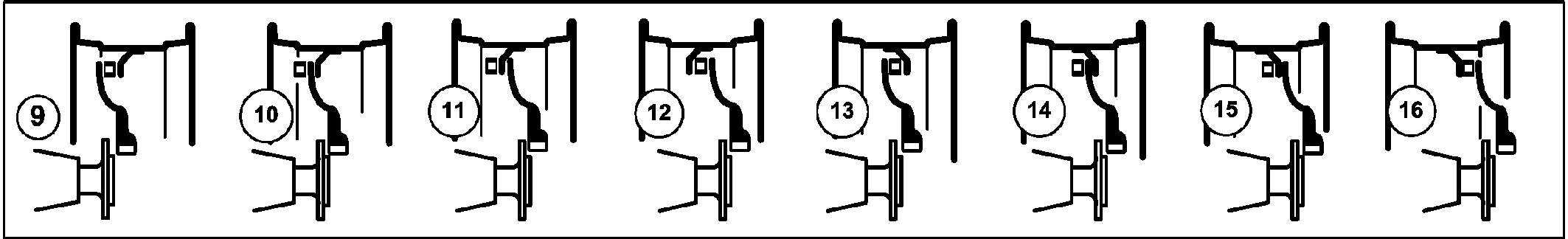

LX1053417-UN-16MAR12

Rear Wheel Tread Adjustment with Rims for 16 Positions (heavy-duty type) / positions 9 to 16

	Tread width setting on delivery	Tread width setting (rear wheels) Arrangement of rim and wheel disk
Tires:		9	10	11	12	13	14	15	16
520/85R42	1926 mm	1636 mm	— **	— **	— **	— **	— **	— **	— **
	(75.83 in.)	(64.41 in.)
580/70R42	1926 mm	— **	— **	— **	— **	— **	— **	— **	— **
	(75.83 in.)
620/70R42	1832 mm	— **	— **	— **	— **	— **	— **	— **	— **
	(72.13 in.)
650/65R42	1832 mm	— **	— **	— **	— **	— **	— **	— **	— **
	(72.13 in.)
650/75R38	1830 mm	— **	— **	— **	— **	— **	— **	— **	— **
	(72.05 in.)
710/70R38	1830 mm	— **	— **	— **	— **	— **	— **	— **	— **
	(72.05 in.)
* Total vehicle width larger than 2.55 m; the regional road traffic licensing regulations have to be observed. ** Installation in this position is not allowed

IMPORTANT: Comply with instructions on rear-wheel tread adjustment with rims for 16 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).
