Rear Wheel Tread Adjustment with Rims for 8 Positions - Rack-and-Pinion Axle (6170R to 6210R Tractors)

IMPORTANT: Comply with tread adjustment instructions, and tighten wheel bolts. See Tighten Rear Wheel Bolts (with Rack-and-Pinion Axle).

IMPORTANT: After adjusting tread, check that the wheels can turn freely.

Do NOT let tires come into contact with draft links or lift links. The gap between lift links and tires can be increased by installing the lift links in the front holes of the draft links.

When draft links are raised (even if no implement is attached), the hydraulic or mechanical stabilizer bars must be locked.

If there is still contact with the draft links or lift links despite all these measures, tread width must be increased.

NOTE: The tread widths shown here apply for the short rack-and-pinion axle.

For maximum tread width with medium-sized and short rack-and-pinion axles, the following values must be subtracted:

• Medium-sized rack-and-pinion axles: 206 mm (8.11 in.)

• Short rack-and-pinion axles: 462 mm (18.19 in.)

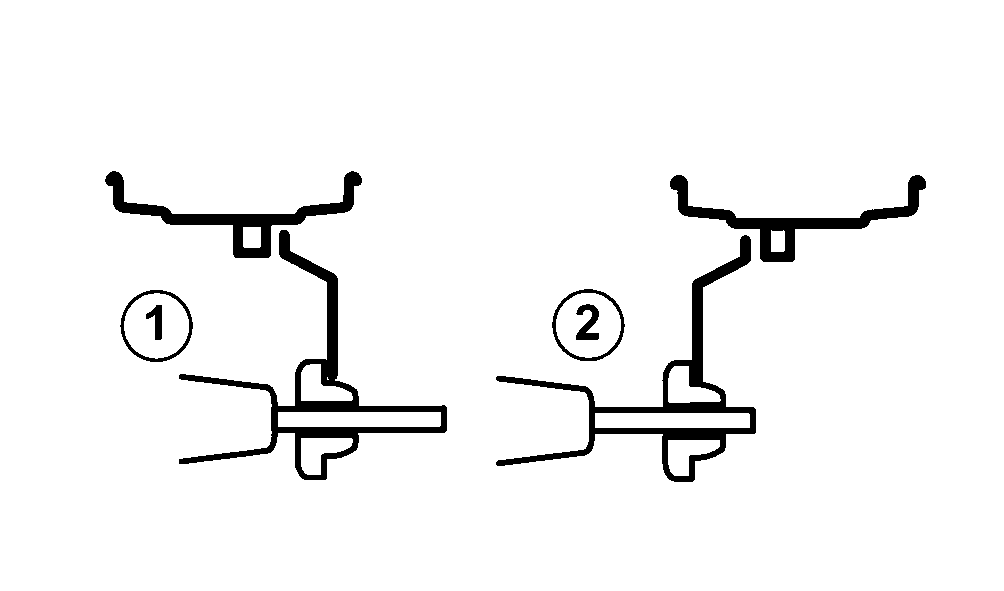

LX1056801-UN-23MAY14

Rear Wheel Tread Adjustment with Rims for 8 Positions - Rack-and-Pinion Axle

	Tread width setting (rear wheels) Arrangement of rim and wheel disk				Tread width setting (rear wheels) Arrangement of rim and wheel disk
Tires:	Minimum (1)	Maximum (2)		Tires:	Minimum (1)	Maximum (2)
520/85R42	1622 mm	3173 mm*		650/75R38	1757 mm	3151 mm*
	(63.86 in.)	(124.92 in.)*			(69.17 in.)	(124.05 in.)*
520/85R46	1624 mm	3155 mm*		650/75R42	1757 mm	3151 mm*
	(63.94 in.)	(124.21 in.)*			(69.17 in.)	(124.05 in.)*
580/70R42	1657 mm	3173 mm*		650/85R38	1757 mm	3151 mm*
	(65.24 in.)	(124.92 in.)*			(69.17 in.)	(124.05 in.)*
620/70R42	1736 mm	3151 mm*		710/70R38	1796 mm	3151 mm*
	(68.35 in.)	(124.05 in.)*			(70.71 in.)	(124.05 in.)*
650/65R42	1757 mm	3151 mm*		710/70R42	1796 mm	3151 mm*
	(69.17 in.)	(124.05 in.)*			(70.71 in.)	(124.05 in.)*

* Total vehicle width larger than 2.55 m; the regional road traffic licensing regulations have to be observed.
