Rear Wheel Tread Adjustment with Rims for 2 Positions - Flanged Axle (Tractor 6140R)

IMPORTANT: Comply with instructions on rear-wheel tread adjustment with rims for 2 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

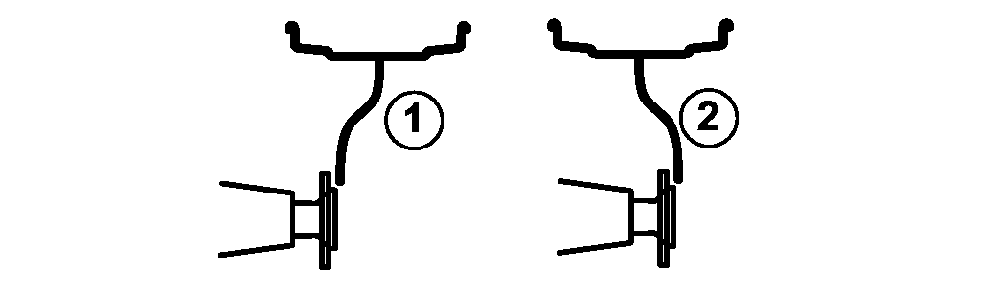

LX1053403-UN-12MAR12

	Tread width setting on delivery	Tread width setting (rear wheels) Arrangement of rim and wheel disk				Tread width setting on delivery	Tread width setting (rear wheels) Arrangement of rim and wheel disk
Tires:		1	2		Tires:		1	2
18.4R38	1812 mm	1812 mm	— **		600/65R38	1812 mm	1812 mm	— **
	(71.34 in.)	(71.34 in.)				(71.34 in.)	(71.34 in.)
20.8R38	1812 mm	1812 mm	— **		620/70R42	1870 mm	1870 mm	— **
	(71.34 in.)	(71.34 in.)				(73.62 in.)	(73.62 in.)
460/85R38	1812 mm	1812 mm	— **		650/65R38	1812 mm	1812 mm	— **
	(71.34 in.)	(71.34 in.)				(71.34 in.)	(71.34 in.)
480/80R38 -R4	1812 mm	1812 mm	— **		650/65R42	1870 mm	1870 mm	— **
	(71.34 in.)	(71.34 in.)				(73.62 in.)	(73.62 in.)
520/70R38	1812 mm	1812 mm	— **		650/75R38	1812 mm	1812 mm	— **
	(71.34 in.)	(71.34 in.)				(71.34 in.)	(71.34 in.)
520/85R38	1812 mm	1812 mm	— **		710/70R38	1812 mm	1812 mm	— **
	(71.34 in.)	(71.34 in.)				(71.34 in.)	(71.34 in.)
520/85R42	1920 mm	1920 mm	— **		VF 650/60R38	1812 mm	1812 mm	— **
	(75.59 in.)	(75.59 in.)				(71.34 in.)	(71.34 in.)
540/80R38 -R4	1812 mm	1812 mm	— **		VF 710/60R38	1812 mm	1812 mm	— **
	(71.34 in.)	(71.34 in.)				(71.34 in.)	(71.34 in.)
580/70R38	1812 mm	1812 mm	— **		VF 710/60R42	1812 mm	1812 mm	— **
	(71.34 in.)	(71.34 in.)				(71.34 in.)	(71.34 in.)
580/70R42	1920 mm	1920 mm	— **
	(75.59 in.)	(75.59 in.)
* Total vehicle width larger than 2.55 m; the regional road traffic licensing regulations have to be observed. ** Installation in this position is not allowed
