Front Wheel Tread Adjustment with Rims for 2 Positions - 6140R

LX1056914-UN-27JUN13

* With AL180127 steering stop only

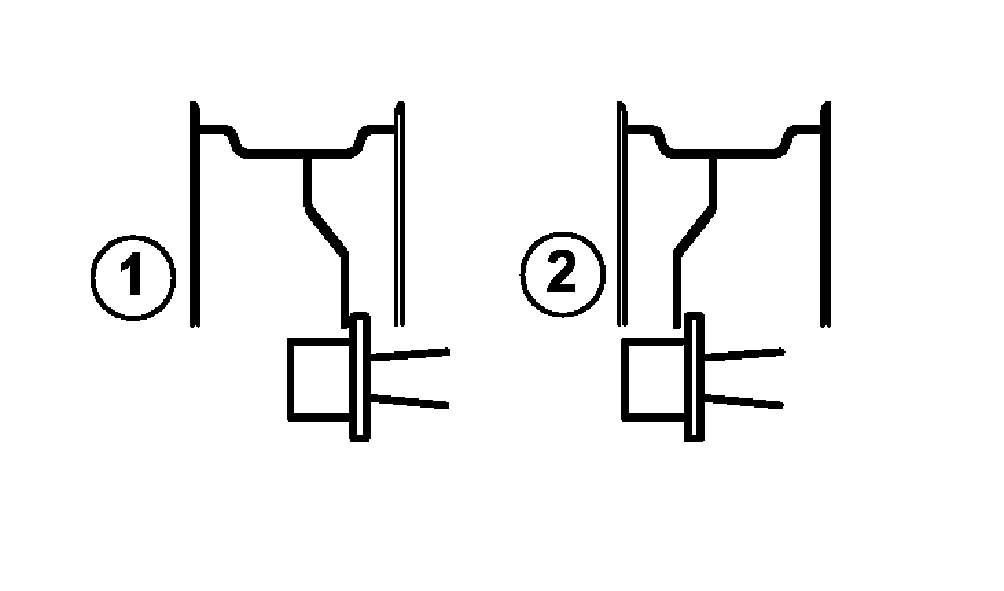

LX1053400-UN-07MAR12

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 2 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

	Tread width setting on delivery	Tread width setting (front wheels) Arrangement of rim and wheel disk				Tread width setting on delivery	Tread width setting (front wheels) Arrangement of rim and wheel disk
Tires:		1	2		Tires:		1	2
13.6R28	1816 mm	1816 mm	1724 mm		440/80R28 -R4	1814 mm	1814 mm	1722 mm
	(71.50 in.)	(71.50 in.)	(67.87 in.)			(71.42 in.)	(71.42 in.)	(67.80 in.)
14.9R28	1816 mm	1816 mm	1724 mm		480/65R28	1816 mm	1816 mm	1724 mm
	(71.50 in.)	(71.50 in.)	(67.87 in.)			(71.50 in.)	(71.50 in.)	(67.87 in.)
16.9R28	1814 mm	1814 mm	1722 mm		480/70R28	1814 mm	1814 mm	1722 mm
	(71.42 in.)	(71.42 in.)	(67.80 in.)			(71.42 in.)	(71.42 in.)	(67.80 in.)
16.9R30	1910 mm	1910 mm	1626 mm		480/70R30	1910 mm	1910 mm	1626 mm
	(75.20 in.)	(75.20 in.)	(64.02 in.)			(75.20 in.)	(75.20 in.)	(64.02 in.)
340/85R28	1816 mm	1816 mm	1724 mm		540/65R28	1814 mm	1814 mm	1722 mm
	(71.50 in.)	(71.50 in.)	(67.87 in.)			(71.42 in.)	(71.42 in.)	(67.80 in.)
380/70R28	1816 mm	1816 mm	1724 mm		540/65R30	1910 mm	1910 mm	1626 mm*
	(71.50 in.)	(71.50 in.)	(67.87 in.)			(75.20 in.)	(75.20 in.)	(64.02 in.)*
380/85R28	1816 mm	1816 mm	1724 mm		600/65R28	1814 mm	1814 mm	1724 mm
	(71.50 in.)	(71.50 in.)	(67.87 in.)			(71.42 in.)	(71.42 in.)	(67.87 in.)
400/80R28 -R4	1816 mm	1816 mm	1724 mm		600/65R28	1880 mm	1880 mm	1658 mm*
	(71.50 in.)	(71.50 in.)	(67.87 in.)			(74.02 in.)	(74.02 in.)	(65.28 in.)*
420/70R28	1816 mm	1816 mm	1724 mm		VF 520/60R28	1816 mm	1816 mm	1726 mm
	(71.50 in.)	(71.50 in.)	(67.87 in.)			(71.50 in.)	(71.50 in.)	(67.95 in.)
420/85R28	1814 mm	1814 mm	1722 mm		VF 520/60R28	1882 mm	1882 mm	1660 mm
	(71.42 in.)	(71.42 in.)	(67.80 in.)			(74.09 in.)	(74.09 in.)	(65.35 in.)
420/85R30	1910 mm	1910 mm	1626 mm		VF 600/60R28	1904 mm	1904 mm	1634 mm*
	(75.20 in.)	(75.20 in.)	(64.02 in.)			(74.96 in.)	(74.96 in.)	(64.33 in.)*
440/80R24 -R4	1816 mm	1816 mm	1720 mm		VF 600/60R30	1904 mm	1904 mm	1638 mm*
	(71.50 in.)	(71.50 in.)	(67.72 in.)			(74.96 in.)	(74.96 in.)	(64.49 in.)*
* With AL180127 steering stop only ** Total vehicle width larger than 2.55 m; the regional road traffic licensing regulations have to be observed.
