Front Axle - Adjust Steering Stop

IMPORTANT:

LX1053442-UN-23MAY12

1. Adjust fenders (if equipped) and tread settings before setting steering stop positions.

2. Select the correct steering stop position for the tire size and tread width. See tables below.

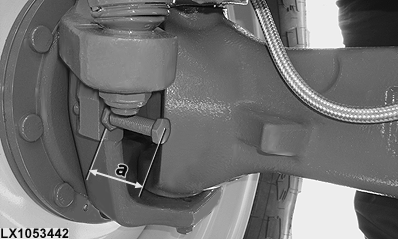

3. Measure the length of screw (a) as shown; this will bring the steering stops to their correct position.

4. Tighten the steering stop retaining nuts to the specified torque.

   Item	Measurement	Specification
   Steering stop retaining nuts	Torque	250 N·m (185 lb.-ft.)

5. Turn wheel fully to the right. Impact the knuckle housing against the steering stop five times. Repeat on the left side.

6. Tighten the steering stop retaining nuts to the specified torque once again.

7. Turn steering wheel fully to the left and then fully to the right to check clearance.

   IMPORTANT: Settings listed are approximate, due to variations in tire size. Steering stops are adjusted properly if the tires leave 20 mm (0.79 in.) clearance with regard to the frame and side of the tractor when the axle is oscillated to its full extent.

Steering stops on tractors 6140R and 6150R

Steering stop positions — 6140R and 6150R
Tire size	Tread width		Length of screw (a)
	[mm]	[in.]	[mm]	[in.]
540/65R24	1818 *	72.4 *	46	1.8
	1910	76.0	26	1.0
	2022	80.4	26	1.0
	2114	84.0	26	1.0
480/70R24	1714	68.3	46	1.8
	1818 *	72.4 *	26	1.0
	1910	76.0	26	1.0
	2022	80.4	26	1.0
	2114	84.0	26	1.0
420/85R24	1714	68.3	40	1.6
	1818	72.4 *	40	1.6
	1910	76.0	26	1.0
	2022	80.4	26	1.0
	2114	84.0	26	1.0
VF 520/60R28	1815	72.3	26	1.0
480/65R28	1713	68.3	59	2.3
	1817	72.4 *	32	1.3
	1909	76.0	30	1.2
	2021	80.4	26	1.0
	2113	84.0	26	1.0
420/70R28	1713	68.3	33	1.3
	1817 *	72.4 *	26	1.0
	1909	76.0	26	1.0
	2021	76.0	26	1.0
	2113	76.0	26	1.0
380/85R28	1621	64.7	64	2.5
	1713	68.3	38	1.5
	1817	72.4 *	26	1.0
	1909	76.0	26	1.0
	2021	80.4	26	1.0
	2113	84.0	26	1.0
480/70R28	1620	64.7	93	3.7
	1712	68.3	69	2.7
	1816 *	72.4 *	40	1.6
	1908	76.0	41	1.6
	2020	80.4	26	1.0
	2112	84.0	26	1.0
320/85R34	1594	63.7	65	2.5
	1696	67.7	40	1.6
	1798 *	71.7	26	1.0
	1900	75.7	26	1.0
	2000	79.6	26	1.0
	2102	83.6	26	1.0
380/85R30	1594	63.7	80	3.1
	1696	67.7	52	2.1
	1798 *	71.7 *	33	1.3
	1900	75.7	26	1.0
	2000	79.6	26	1.0
	2102	83.6	26	1.0
540/65R28	1712	68.3	88	3.5
	1816 *	72.4 *	61	2.4
	1908	76.0	38	1.5
	2020	80.4	30	1.2
	2112	84.0	26	1.0
440/80R28	1712	68.3	65	2.6
	1816 *	72.4 *	40	1.6
	1908	76.0	29	1.1
	2020	80.4	26	1.0
	2112	84.0	26	1.0
420/85R28	1712	68.3	62	2.4
	1816 *	72.4 *	38	1.5
	1908	76.0	31	1.2
	2020	80.4	26	1.0
	2112	84.0	26	1.0
VF 600/60R28	1904	75.9	95	3.7
16.9R28/R2	1594	63.7	95	3.7
	1696	67.7	77	3.0
	1798 *	71.7 *	52	2.1
	1900	75.7	36	1.4
	2000	79.6	28	1.1
	2102	83.6	26	1.0
480/70R30	1720	68.6	76	3.0
	1812	72.2	50	2.0
	1916 *	76.3 *	33	1.3
	2016	80.3	28	1.1
	2120	84.3	26	1.0
540/65R30	1812	72.3	71	2.8
	1916 *	76.3 *	45	1.8
	2016	80.3	31	1.2
	2120	84.4	26	1.0
420/85R30	1720	68.6	69	2.7
	1812	72.2	47	1.8
	1916 *	76.3 *	32	1.3
	2016	80.3	26	1.0
	2120	84.3	26	1.0
VF 600/60R30	1904 *	75.9 *	95	3.7
600/65R28	1756	70.0	95	3.7
	1776	70.8	95	3.7
	1880 *	74.9 *	95	3.7
	2052	81.7	95	3.7
	2156	85.8	72	2.8
540/75R28	1910 *	76.1 *	57	2.3
320/85R38	1513	60.5	95	3.7
	1601	64.0	79	3.1
	1717	68.5	52	2.1
	1847 *	73.6 *	34	1.3
	1919	76.5	26	1.0
	2021	80.5	26	1.0
	2123	84.5	26	1.0
380/85R34	1511	60.4	95	3.7
	1613	64.5	90	3.5
	1713	68.4	68	2.7
	1815 *	72.4 *	47	1.8
	1917	76.4	32	1.3
	2019	80.4	26	1.0
	2121	84.4	--	--
420/90R30	1511	60.4	95	3.7
	1613	64.5	95	3.7
	1713	68.4	77	3.0
	1815 *	72.4 *	54	2.1
	1917	76.4	49	1.9
	2019	80.4	29	1.1
	2121	84.4	26	1.0
16.9R30/R2	1511	60.4	95	3.7
	1613	64.5	95	3.7
	1713	68.4	82	3.2
	1815 *	72.4 *	57	2.3
	1917	76.4	69	2.7
	2019	80.4	29	1.1
	2121	84.4	26	1.0
* Tread width setting on delivery. This is the only tread width that permits front-loader operation.

Steering stops on tractors 6170R, 6190R and 6210R

Steering stop positions			6170R		6190R		6210R
Tire size	Tread width		Length of screw (a)		Length of screw (a)		Length of screw (a)
	[mm]	[in.]	[mm]	[in.]	[mm]	[in.]	[mm]	[in.]
480/70R30	1720	67.7	74	2.9	74	2.9	73	2.9
	1812	71.3	50	2.0	49	1.9	50	2.0
	1916 *	75.4 *	35	1.4	35	1.4	31	1.2
	2016	79.4	31	1.2	31	1.2	29	1.2
	2120	83.4	27	1.1	27	1.1	25	1.0
540/65R30	1812	71.3	70	2.8	70	2.8	70	2.7
	1916 *	75.4 *	43	1.7	43	1.7	42	1.6
	2016	79.4	33	1.3	33	1.3	31	1.2
	2120	83.4	29	1.1	29	1.1	27	1.1
420/85R30	1720	67.7	68	2.7	67	2.6	68	2.7
	1812	71.3	45	1.8	45	1.8	44	1.7
	1916 *	75.4 *	35	1.4	35	1.4	31	1.2
	2016	79.4	29	1.1	27	1.1	25	1.0
	2120	83.4	27	1.1	27	1.1	25	1.0
16.9R30	1720	67.7	70	2.8	70	2.8	70	2.7
	1812	71.3	47	1.9	47	1.9	48	1.9
	1916 *	75.4 *	35	1.4	35	1.4	34	1.3
	2016	79.4	29	1.1	29	1.1	27	1.1
	2120	83.4	27	1.1	27	1.1	25	1.0
VF 600/60R30	1904	74.9	64	2.5	63	2.5	63	2.5
600/65R28	1756	69.1	95	3.7	95	3.7	95	3.7
	1776	69.9	94	3.7	93	3.7	95	3.7
	1880 *	74.0 *	70	2.8	70	2.8	70	2.7
	2052	80.8	37	1.5	37	1.5	36	1.4
	2156	84.9	31	1.2	--	--	29	1.2
320/85R38	1513	59.6	95	3.7	95	3.7	95	3.7
	1601	63.0	78	3.1	77	3.0	76	3.0
	1717	67.6	51	2.0	51	2.0	50	2.0
	1847 *	72.7 *	35	1.4	35	1.4	34	1.3
	1919	75.5	31	1.2	30	1.2	27	1.1
	2021	79.6	27	1.1	27	1.1	25	1.0
	2123	83.6	27	1.1	27	1.1	25	1.0
380/85R34	1511	59.5	95	3.7	95	3.7	95	3.7
	1613	63.5	88	3.5	87	3.4	87	3.4
	1713	67.4	65	2.6	65	2.6	64	2.5
	1815 *	71.4 *	45	1.8	43	1.7	42	1.6
	1917	75.5	35	1.4	35	1.4	31	1.2
	2019	79.5	29	1.1	27	1.1	25	1.0
	2121	83.5	27	1.1	27	1.1	25	1.0
420/90R30	1511	59.5	95	3.7	95	3.7	95	3.7
	1613	63.5	95	3.7	95	3.7	95	3.7
	1713	67.4	75	3.0	75	3.0	75	2.9
	1815 *	71.4 *	53	2.1	52	2.1	51	2.0
	1917	75.5	41	1.6	41	1.6	36	1.4
	2019	79.5	33	1.3	33	1.3	29	1.2
	2121	83.5	27	1.1	27	1.1	25	1.0
16.9R30/R2	1511	59.5	95	3.7	95	3.7	95	3.7
	1613	63.5	95	3.7	95	3.7	95	3.7
	1713	67.4	74	2.9	73	2.9	73	2.9
	1815 *	71.4 *	49	1.9	48	1.9	48	1.9
	1917	75.5	37	1.4	35	1.4	34	1.3
	2019	79.5	29	1.1	29	1.1	27	1.1
	2121	83.5	27	1.1	27	1.1	25	1.0
600/65R30	1755	69.1	95	3.7	95	3.7	95	3.7
	1775	69.9	95	3.7	95	3.7	95	3.7
	1879 *	74.0 *	79	3.1	78	3.1	78	3.1
	2051	80.7	43	1.7	43	1.7	42	1.6
	2155	84.8	35	1.4	35	1.4	34	1.3
460/85R30	1719	67.7	85	3.3	84	3.3	84	3.3
	1811	71.3	65	2.6	65	2.5	64	2.5
	1915 *	75.4 *	45	1.8	45	1.8	44	1.7
	2015	79.3	37	1.4	35	1.4	34	1.3
	2119	83.4	29	1.1	29	1.1	27	1.1
600/70R28	1755	69.1	95	3.7	95	3.7	95	3.7
	1775	69.9	95	3.7	95	3.7	95	3.7
	1879	74.0	80	3.1	78	3.1	78	3.1
	2051	80.7	45	1.8	45	1.8	42	1.6
	2155	84.8	--	--	35	1.4	--	--
380/80R38	1512	59.5	95	3.7	95	3.7	95	3.7
	1600	63.0	95	3.7	95	3.7	95	3.7
	1716	67.6	72	2.8	72	2.8	71	2.8
	1846 *	72.7 *	48	1.9	47	1.9	46	1.8
	1918	75.5	41	1.6	39	1.5	38	1.5
	2020	79.5	33	1.3	33	1.3	29	1.2
	2122	83.5	27	1.1	27	1.1	25	1.0
420/85R34	1510	59.4	95	3.7	95	3.7	95	3.7
	1612	63.5	95	3.7	95	3.7	95	3.7
	1712	67.4	82	3.2	82	3.2	81	3.2
	1814 *	71.4 *	60	2.4	60	2.4	59	2.3
	1916	75.4	49	1.9	49	1.9	44	1.7
	2018	79.4	37	1.5	37	1.5	34	1.3
	2120	83.5	31	1.2	31	1.2	27	1.1
480/70R34	1612	63.5	95	3.7	95	3.7	95	3.7
	1712	67.4	92	3.6	92	3.6	92	3.6
	1814	71.4	72	2.8	72	2.8	71	2.8
	1916	75.4	52	2.1	52	2.1	50	2.0
	2018	79.4	45	1.8	45	1.8	44	1.7
	2120	83.5	35	1.4	35	1.4	34	1.3
600/70R30	1754	69.0	95	3.7	95	3.7	95	3.7
	1774	69.8	95	3.7	95	3.7	95	3.7
	1878 *	73.9 *	85	3.3	84	3.3	84	3.3
	2050	80.7	51	2.0	50	2.0	50	2.0
	2154	84.8	41	1.6	41	1.6	40	1.6
* Tread width setting on delivery. This is the only tread width that permits front-loader operation.
