Checking Toe-in on Front-Wheel Drive Axles

LX202536
LX202536-UN-29JUL13

LX1046204
LX1046204-UN-16JUN11

  1. Make sure wheels are in the straight forward position by driving tractor in a straight line for approx. 15 m (50 ft).

    CAUTION: Keep the engine switched off while making the measurements, and secure the tractor so that it cannot roll away.

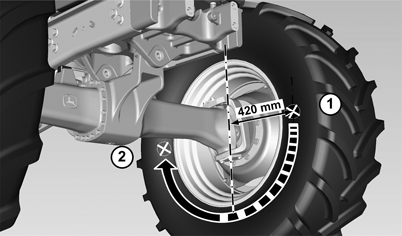

  2. Starting from the center of the wheel, make a marking (X) (1) at 420mm (16.5 in.) on both inner sides of the wheel. Both markings have to be at the axis height (half the wheel diameter).

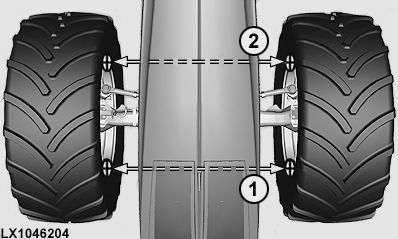

  3. Measure distance (1) at the front from the right to left wheel and make a note of the measurement.

  4. Roll the tractor forward by half the circumference of the front wheel, bringing the (X) mark to the rear (2).

  5. At the rear, measure distance (2) and make a note of the measurement.

Dimension (1) at the front must correspond to dimension (2) at the rear. A deviation of ± 1.5 mm (0.06 in.) is permissible.

OULXA64,0002B5B-19-20130730
