Fuses and Relays (LCS) on DirectDrive Transmission - (on 6140R and 6210R Tractors)
General information
LX1050130-UN-08MAR11
LX1050131-UN-16FEB11
IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than specified on the arrangement diagram.
IMPORTANT: Some fuse positions are vacant when the tractor is delivered; these must be left vacant until the appropriate options are retro-fitted.
The fuse and relay box of the Load Center Secondary (LCS) circuit is located in the footwell of the right console.
Remove cover of fuse and relay box (LCS).

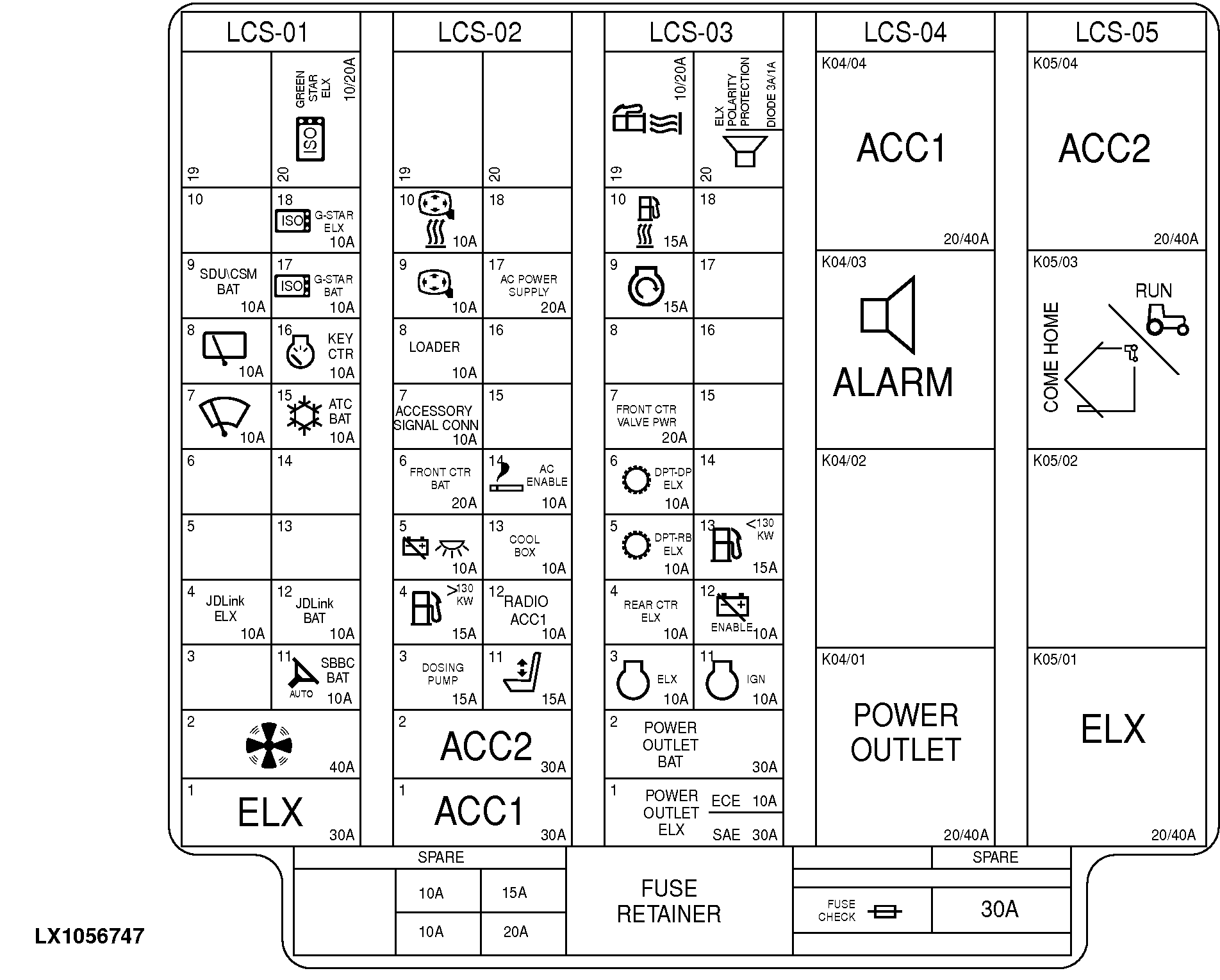

Summary of fuse and relay box (LCS) - (on tractors 6140R to 6210R)
LX1056747-UN-17SEP12
LCS-01 - F01LCS - Fuses (LCS) with DirectDrive Transmission
LCS-02 - F02LCS - Fuses (LCS) with DirectDrive Transmission
LCS-03 - F03LCS - Fuses (LCS) with DirectDrive Transmission
LCS-01 - K01LCS - Relays (LCS) with DirectDrive Transmission
LCS-02 - K02LCS - Relays (LCS) with DirectDrive Transmission
LCS-03 - K03LCS - Relays / Diodes (LCS) with DirectDrive Transmission
LCS-04 - K04LCS - Relays (LCS) with DirectDrive Transmission
LCS-05 - K05LCS - Relays (LCS) with DirectDrive Transmission
FUSE CHECK - Fuse Tester
FUSE RETAINER - Retainer for Tool for Changing Fuses (Suitable for all Types of Fuse)
SPARE - Spare Fuses
F01LCS - Fuses (LCS) on DirectDrive transmission - (on 6140R to 6210R tractors)
LX1054511-UN-22DEC11
|
Fuse no. |
Capacity (amps) |
Consumer |
|---|---|---|
|
F01LCS/01 |
30 amps |
Power supply to electronics (ELX) |
|
F01LCS/02 |
40 amps |
Recirculation fan motor |
|
F01LCS/03 |
— |
Not used |
|
F01LCS/04 |
10 amps |
Control unit for telematics (JDLink™/Service ADVISOR™ Remote) |
|
F01LCS/05 |
— |
Not used |
|
F01LCS/06 |
— |
Not used |
|
F01LCS/07 |
10 amps |
Windshield wiper motor |
|
F01LCS/08 |
10 amps |
Rear window wiper motor |
|
F01LCS/09 |
10 amps |
Control unit for CommandCenter™, control unit for switch module in cab, service socket (CAN BUS) |
|
F01LCS/10 |
— |
Not used |
|
F01LCS/11 |
10 amps |
Steering control unit (AutoTrac™) |
|
F01LCS/12 |
10 amps |
Control unit for telematics (JDLink™/Service ADVISOR™ Remote) |
|
F01LCS/13 |
— |
Not used |
|
F01LCS/14 |
— |
Not used |
|
F01LCS/15 |
10 amps |
Control unit for ClimaTrak™, radio or control unit for air-conditioning system, radio |
|
F01LCS/16 |
10 amps |
Instrument unit, immobilizer control unit |
|
F01LCS/17 |
10 amps |
GreenStar™ (AMS) |
|
F01LCS/18 |
10 amps |
GreenStar™ (AMS) |
F02LCS - Fuses (LCS) on DirectDrive transmission - (on 6140R and 6150R tractors)
LX1054512-UN-22DEC11
|
Fuse no. |
Capacity (amps) |
Consumer |
|---|---|---|
|
F02LCS/01 |
30 amps |
Power supply for accessories (ACC1) |
|
F02LCS/02 |
30 amps |
Power supply for accessories (ACC2) |
|
F02LCS/03 |
— 15 amps |
Not used on 6140R and 6150R On 6170R to 6210R, fuel dosing pump |
|
F02LCS/04 |
— 15 amps |
Not used on 6140R and 6150R On 6170R to 6210R, fuel transfer pump |
|
F02LCS/05 |
10 amps |
Battery cut-off switch, access step light |
|
F02LCS/06 |
20 amps |
Front chassis control unit |
|
F02LCS/07 |
10 amps |
Connector for accessories (X37F-3), signal socket |
|
F02LCS/08 |
15 amps |
Connector of front loader (X37F), electro-hydraulic pick-up hitch (E-PUH) |
|
F02LCS/09 |
10 amps |
Electrical outside mirrors (adjustment) |
|
F02LCS/10 |
10 amps |
Electrical outside mirrors (heating) |
|
F02LCS/11 |
15 amps |
Operator's seat |
|
F02LCS/12 |
10 amps |
Radio |
|
F02LCS/13 |
10 amps |
Electrical cooling compartment |
|
F02LCS/14 |
10 amps |
Cigarette lighter, 230/115-volt current converter, video camera |
|
F02LCS/15 |
— |
Not used |
|
F02LCS/16 |
— |
Not used |
|
F02LCS/17 |
20 amps |
230/115-volt current converter |
|
F02LCS/18 |
— |
Not used |

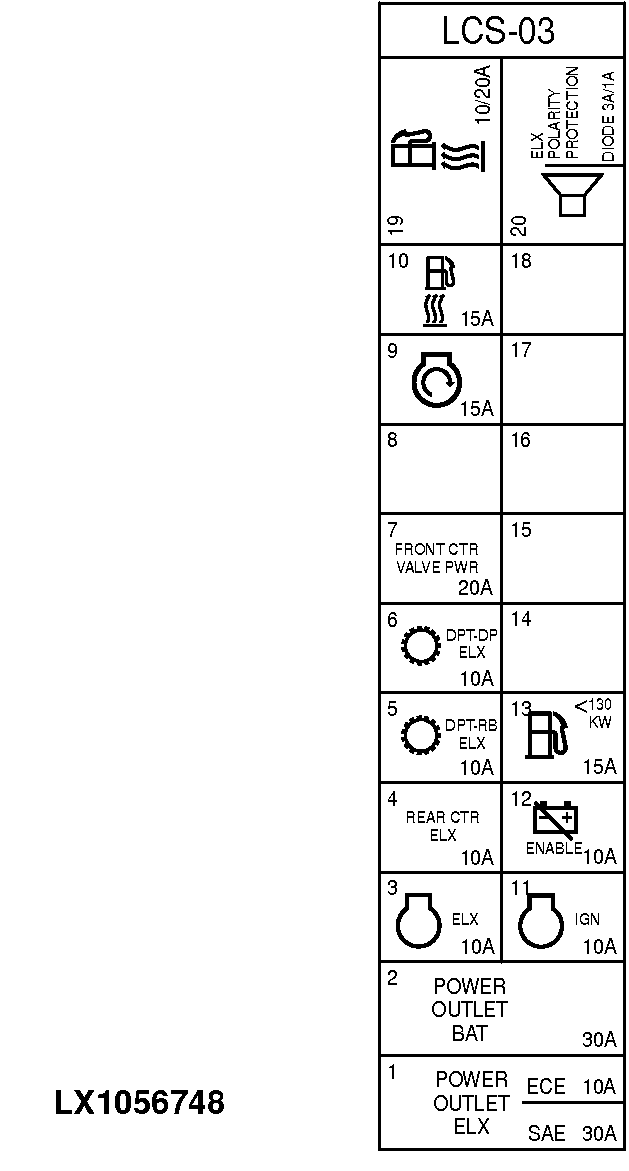

F03LCS - Fuses (LCS) on DirectDrive transmission - (on 6140R and 6150R tractors)
LX1056748-UN-17SEP12
|
Fuse no. |
Capacity (amps) |
Consumer |
|---|---|---|
|
F03LCS/01 |
30 amps |
3-terminal socket, power outlet strip, 7-terminal socket (SAE) |
|
10 amps |
3-terminal socket, power outlet strip (ECE) |
|
|
F03LCS/02 |
30 amps |
3-terminal socket, power outlet strip, 7-terminal socket (SAE) |
|
30 amps |
3-terminal socket, power outlet strip (ECE) |
|
|
F03LCS/03 |
10 amps |
Engine control unit, immobilizer control unit |
|
F03LCS/04 |
10 amps |
Rear chassis control unit |
|
F03LCS/05 |
10 amps |
Control unit for range shifting (DirectDrive transmission) |
|
F03LCS/06 |
10 amps |
Control unit for gear shifting (DirectDrive transmission) |
|
F03LCS/07 |
20 amps |
Power supply of front chassis control unit (solenoid valves, E-ICV stepper motors) |
|
F03LCS/08 |
— |
Not used |
|
F03LCS/09 |
15 amps |
Key switch |
|
F03LCS/10 |
15 amps |
Fuel preheater |
|
F03LCS/11 |
10 amps |
Engine control unit ECU |
|
F03LCS/12 |
15 amps |
Relay for battery cut-off switch |
|
F03LCS/13 |
15 amps |
Fuel pump on 6140R and 6150R tractors Not used on 6170R to 6210R |
|
F03LCS/14 |
— |
Not used |
|
F03LCS/15 |
— |
Not used |
|
F03LCS/16 |
— |
Not used |
|
F03LCS/17 |
— |
Not used |
|
F03LCS/18 |
— |
Not used |
Relays (LCS) with DirectDrive transmission - (on tractors 6140R to 6210R)
LX1054501-UN-22DEC11
|
Relay no. |
Capacity (amps) |
Designation |
Relay no. |
Capacity (amps) |
Designation |
|---|---|---|---|---|---|
|
K01LCS/19 |
— |
Not used |
K04LCS/01 |
20/40 amps |
Relay for 3-terminal socket, power outlet strip, 7-terminal socket (SAE) Relay for 3-terminal socket, power outlet strip (ECE) |
|
K01LCS/20 |
10/20 amps |
Relay for GreenStar™ (AMS) |
K04LCS/02 |
— |
Not used |
|
K04LCS/03 |
— |
Acoustic alarm |
|||
|
K02LCS/19 |
— |
Not used |
K04LCS/04 |
20/40 amps |
Relay for power supply to accessories (ACC1) |
|
K02LCS/20 |
— |
Not used |
|||
|
K05LCS/01 |
20/40 amps |
Relay for power supply to electronics (ELX) |
|||
|
K03LCS/19 |
10/20 amps |
Relay for fuel preheater |
K05LCS/02 |
— |
Not used |
|
K03LCS/20 |
1 amp |
Diode for power supply to electronics |
K05LCS/03 |
— |
Connector for come-home mode |
|
K03LCS/20 |
3 amps |
Diode for acoustic alarm |
K05LCS/04 |
20/40 amps |
Relay for power supply to accessories (ACC2) |
|
