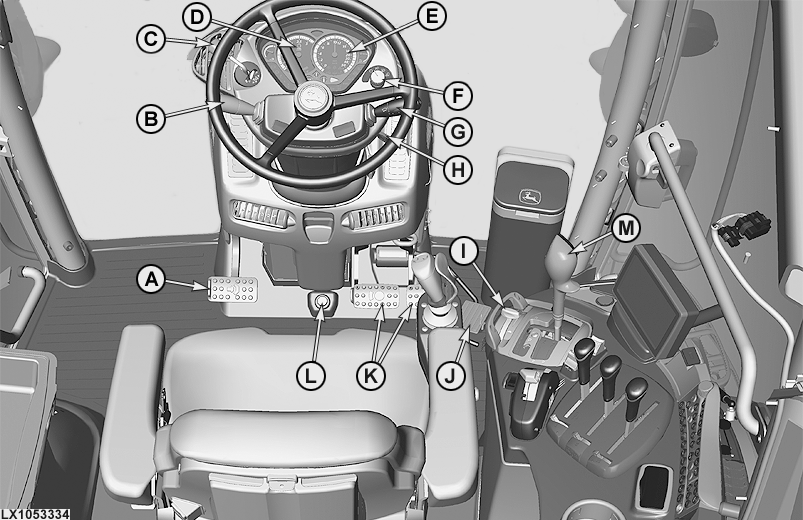

Vehicle Controls with PowrQuad™ PLUS and AutoQuad™ PLUS Transmissions

LX1053334-UN-25NOV11

A - Clutch Pedal

B - Turn Signal Lever/Horn

C - Reverse Drive Lever

D - Tachometer (Engine rpm)

E - Speedometer, km/h or mph

F - Light Switch

G - Wiper Switch

H - Key Switch

I - Hand Throttle

J - Accelerator Pedal

K - Left and Right Brake Pedals

L - Differential Lock

M - Range Shift Lever with Gear Shift Switches and Hand Clutch Button
