Check the Neutral Start Circuit - AutoPowr™/IVT™ Transmission

LX1041027
LX1041027-UN-08JUN06

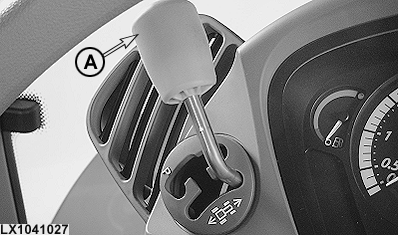

A - Reverse Drive Lever

  1. Move the reverse drive lever (A) to forward or reverse position.

  2. Start the engine and wait 6-7 seconds. The N display must light up.

  3. Depress the clutch pedal and gradually release the clutch pedal. The tractor must NOT start to move. If it does, see your John Deere™ dealer immediately.
