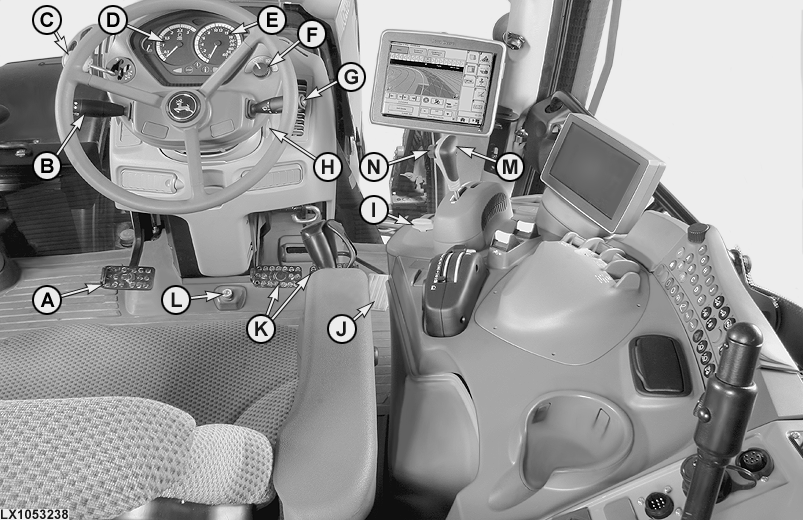

Vehicle Controls with AutoPowr™/IVT™ Transmission

LX1053238-UN-01JUL11

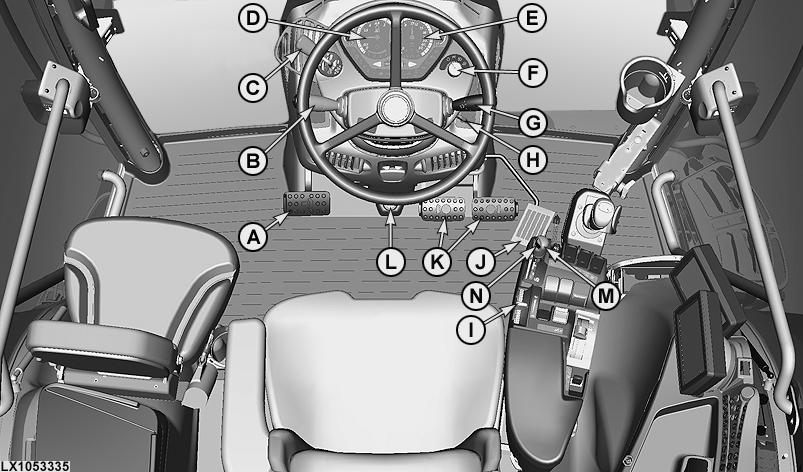

Vehicle Controls without CommandARM™

LX1053335-UN-25NOV11

Vehicle Controls with CommandARM™

A - Clutch Pedal

B - Turn Signal Lever/Horn

C - Reverse Drive Lever

D - Tachometer (Engine rpm)

E - Speedometer, km/h or mph

F - Light Switch

G - Wiper Switch

H - Ignition Switch

I - Hand Throttle

J - Foot Throttle

K - Left and Right Brake Pedals

L - Differential Lock

M - Speed Control Lever

N - Speed Wheel
