Rear Wheel Tread Adjustment with Rims for 16 Positions - Flanged Axle (Tractor 6150R)

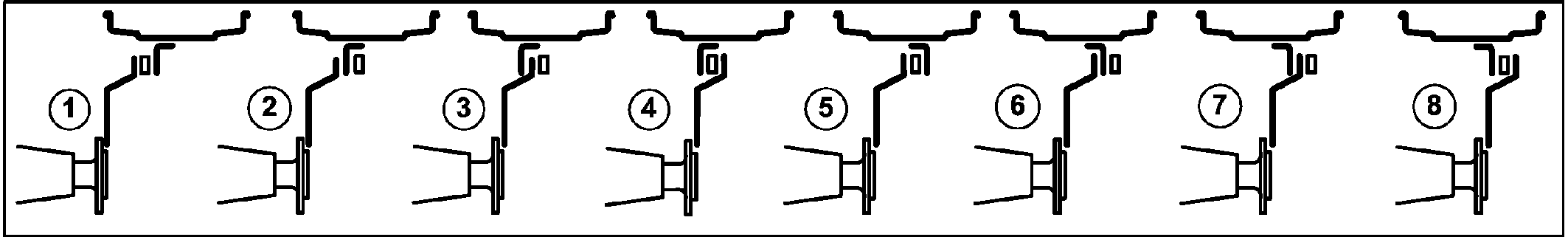

LX1053414-UN-16MAR12

Rear Wheel Tread Adjustment with Rims for 16 Positions / Positions 1 to 8

	Tread width setting on delivery	Tread width setting (rear wheels) Arrangement of rim and wheel disk
Tires:		1	2	3	4	5	6	7	8
20.8R38	1824 mm	2030 mm*	2000 mm	1956 mm	1926 mm	1826 mm	1796 mm	1752 mm	1722 mm
	(71.81 in.)	(79.92 in.)*	(78.74 in.)	(77.01 in.)	(75.83 in.)	(71.89 in.)	(70.71 in.)	(68.98 in.)	(67.80 in.)
520/85R38	1824 mm	2030 mm*	2000 mm	1956 mm	1926 mm	1826 mm	1796 mm	1752 mm	1722 mm
	(71.81 in.)	(79.92 in.)*	(78.74 in.)	(77.01 in.)	(75.83 in.)	(71.89 in.)	(70.71 in.)	(68.98 in.)	(67.80 in.)
520/85R42	1926 mm	2036 mm*	2006 mm	1956 mm	1926 mm	1832 mm	1802 mm	1752 mm	1722 mm
	(75.83 in.)	(80.16 in.)*	(78.98 in.)	(77.01 in.)	(75.83 in.)	(72.13 in.)	(70.94 in.)	(68.98 in.)	(67.80 in.)
580/70R38	1824 mm	2030 mm*	2000 mm*	1956 mm	1926 mm	1826 mm	1796 mm	1752 mm	1722 mm
	(71.81 in.)	(79.92 in.)*	(78.74 in.)*	(77.01 in.)	(75.83 in.)	(71.89 in.)	(70.71 in.)	(68.98 in.)	(67.80 in.)
580/70R42	1926 mm	2036 mm*	2006 mm*	1956 mm	1926 mm	1832 mm	1802 mm	1752 mm	1722 mm
	(75.83 in.)	(80.16 in.)*	(78.98 in.)*	(77.01 in.)	(75.83 in.)	(72.13 in.)	(70.94 in.)	(68.98 in.)	(67.80 in.)
620/70R42	1832 mm	2036 mm*	2006 mm*	1956 mm*	1926 mm*	1832 mm	1802 mm	1752 mm	— **
	(72.13 in.)	(80.16 in.)*	(78.98 in.)*	(77.01 in.)*	(75.83 in.)*	(72.13 in.)	(70.94 in.)	(68.98 in.)
650/65R38	1824 mm	2030 mm*	2000 mm*	1958 mm*	1928 mm*	1826 mm	1796 mm	— **	— **
	(71.81 in.)	(79.92 in.)*	(78.74 in.)*	(77.09 in.)*	(75.91 in.)*	(71.89 in.)	(70.71 in.)
650/65R42	1832 mm	2036 mm*	2006 mm*	1956 mm*	1926 mm*	1832 mm	1802 mm	— **	— **
	(72.13 in.)	(80.16 in.)*	(78.98 in.)*	(77.01 in.)*	(75.83 in.)*	(72.13 in.)	(70.94 in.)
650/75R38	1830 mm	2036 mm*	2006 mm*	1956 mm*	1926 mm*	1832 mm	1802 mm	— **	— **
	(72.05 in.)	(80.16 in.)*	(78.98 in.)*	(77.01 in.)*	(75.83 in.)*	(72.13 in.)	(70.94 in.)
710/70R38	1831 mm	2036 mm*	2006 mm*	1956 mm*	1926 mm*	1832 mm	1802 mm	— **	— **
	(72.09 in.)	(80.16 in.)*	(78.98 in.)*	(77.01 in.)*	(75.83 in.)*	(72.13 in.)	(70.94 in.)
300/95R52	1826 mm	2030 mm	2000 mm	1958 mm	1928 mm	1826 mm	1796 mm	1754 mm	1724 mm
	(71.89 in.)	(79.92 in.)	(78.74 in.)	(77.09 in.)	(75.91 in.)	(71.89 in.)	(70.71 in.)	(69.05 in.)	(67.87 in.)
* Total vehicle width larger than 2.55 m; the regional road traffic licensing regulations have to be observed. ** Installation in this position is not allowed

IMPORTANT: Comply with instructions on rear-wheel tread adjustment with rims for 16 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

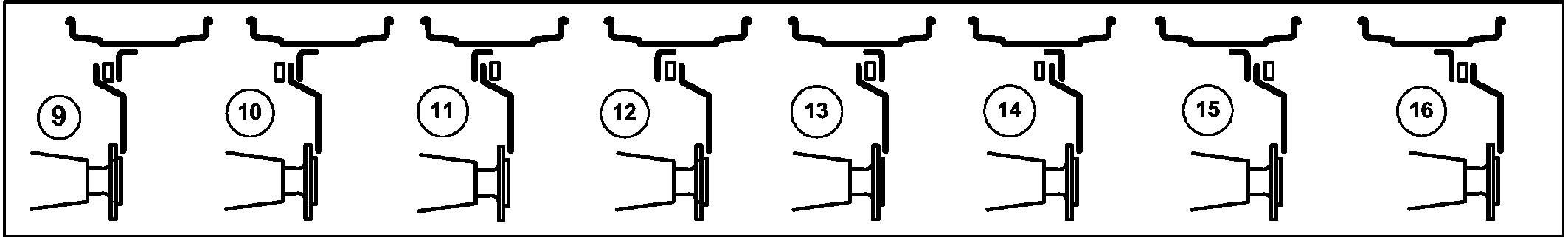

LX1053415-UN-16MAR12

Rear Wheel Tread Adjustment with Rims for 16 Positions / Positions 9 to 16

	Tread width setting on delivery	Tread width setting (rear wheels) Arrangement of rim and wheel disk
Tires:		9	10	11	12	13	14	15	16
20.8R38	1824 mm	— **	— **	— **	— **	— **	— **	— **	— **
	(71.81 in.)
520/85R38	1824 mm	1630 mm	— **	— **	— **	— **	— **	— **	— **
	(71.81 in.)	(64.17 in.)
520/85R42	1926 mm	1636 mm	— **	— **	— **	— **	— **	— **	— **
	(75.83 in.)	(64.41 in.)
580/70R38	1824 mm	— **	— **	— **	— **	— **	— **	— **	— **
	(71.81 in.)
580/70R42	1926 mm	— **	— **	— **	— **	— **	— **	— **	— **
	(75.83 in.)
620/70R42	1832 mm	— **	— **	— **	— **	— **	— **	— **	— **
	(72.13 in.)
650/65R38	1824 mm	— **	— **	— **	— **	— **	— **	— **	— **
	(71.81 in.)
650/65R42	1832 mm	— **	— **	— **	— **	— **	— **	— **	— **
	(72.13 in.)
650/75R38	1830 mm	— **	— **	— **	— **	— **	— **	— **	— **
	(72.05 in.)
710/70R38	1831 mm	— **	— **	— **	— **	— **	— **	— **	— **
	(72.09 in.)
300/95R52	1826 mm	1630 mm	1600 mm	1558 mm	1528 mm	1426 mm	1396 mm	— **	— **
	(71.89 in.)	(64.17 in.)	(62.99 in.)	(61.34 in.)	(60.16 in.)	(56.14 in.)	(54.96 in.)
* Total vehicle width larger than 2.55 m; the regional road traffic licensing regulations have to be observed. ** Installation in this position is not allowed

IMPORTANT: Comply with instructions on rear-wheel tread adjustment with rims for 16 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).
