Emergency Brake System

LX1049730-UN-20APR10

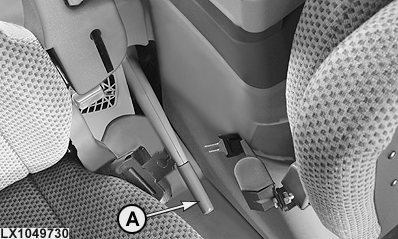

In the event of service brake failure, the emergency brake system can be used to brake the tractor. To do this, pull lever (A) up to obtain a braking effect.

IMPORTANT: The emergency brake system is NOT suitable for use as a parking brake. Park lock must be engaged when the tractor is parked.

When parking, the trailer brake is applied via the park lock lever and not via the emergency brake.
