Intelligent Power Management (power boost)

LX1053229-UN-27JUN11

LX1049901-UN-15FEB11

LX1045888-UN-25FEB11

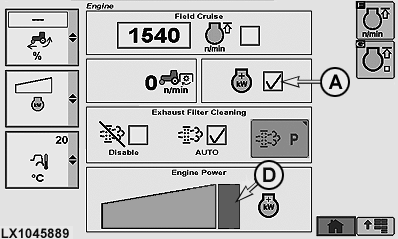

Power Boost

LX1045889-UN-25FEB11

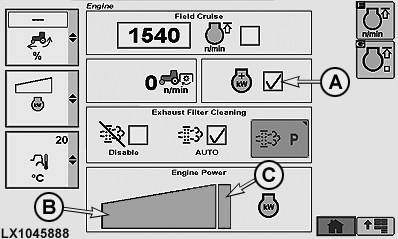

Power Bulge

A - Engine Button

B - Engine Power below Rated Power

C - Power Bulge above Rated Power

D - Power Boost above Power Bulge

NOTE: Power boost is activated automatically when starting the engine.

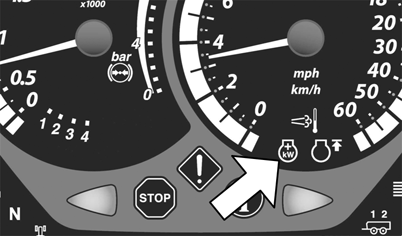

To de-activate or re-activate power boost, press engine button (A) and make a choice on the screen. The indicator light (see arrow) lights up while power boost is active.

If power boost is activated at the CommandCenter™, then the following applies:

a) Transport work
Engine power is increased automatically when ground speed exceeds 15 km/h (9.3 mph). This power boost persists until the ground speed drops below 10 km/h (6.2 mph).

b) PTO operation
When using PTO-driven implements, engine power is increased gradually when ground speed exceeds 1 km/h (0.6 mph), if the tractor electronic system detects a correspondingly high PTO power requirement. Full power becomes available from a speed of 2.5 km/h (1.5 mph).

Engine power display

Fields (B), (C) and (D) display the current engine power (light green or dark green color).

• Field (B) represents the power range up to rated engine power.
• Field (C) represents the John Deere power bulge (above rated power).
• The power boost achieved by the Intelligent Power Management system for PTO operation and transport work is displayed in field (D) (dark green color).

  In addition, a + sign appears in the engine icon.
