Dimensions

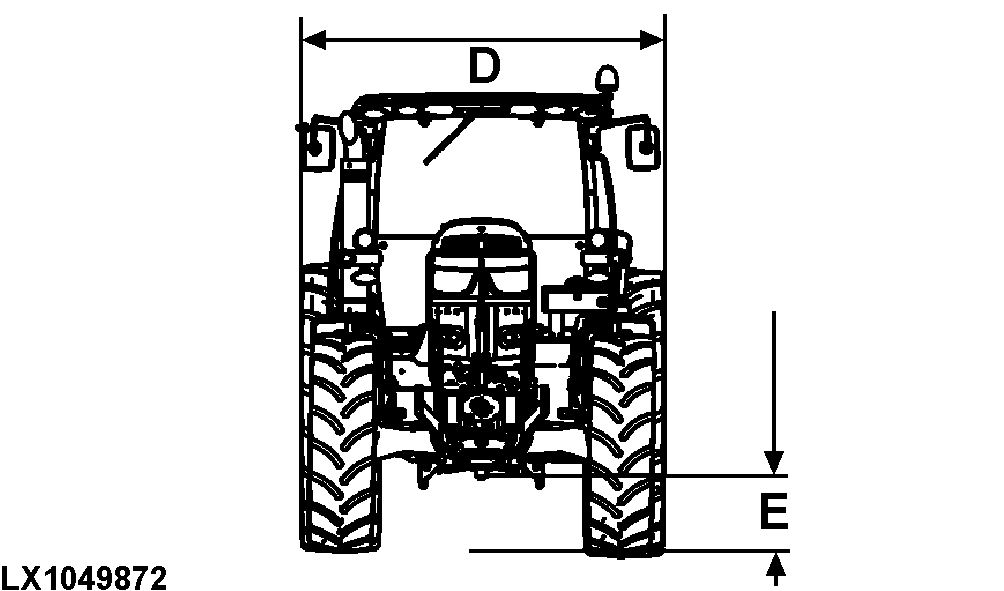

LX1049871-UN-26JAN11

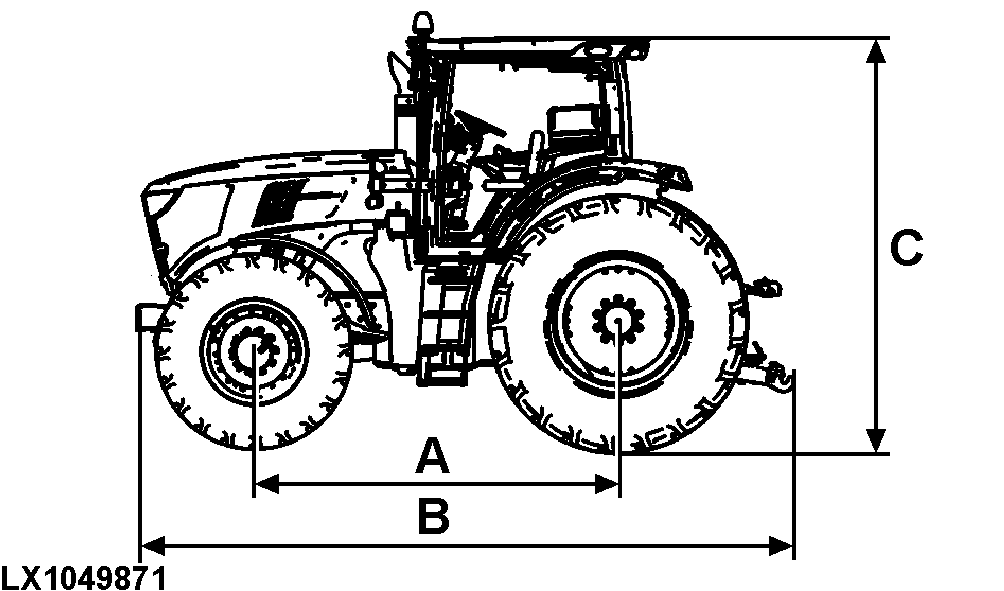

LX1049872-UN-26JAN11

	6140R and 6150R	6170R to 6210R
A - Wheelbase ..............	2765 mm (108.9 in.)	2800 mm (110.2 in.)
B - Length
• Basic weight to draft link in horizontal position ..............	4937 mm (194.4 in.)	5045 mm (198.6 in.)
• Front weight to draft link in horizontal position ..............	5359 mm (211.0 in.)	5467 mm (215.2 in.)
C - Height
- from ground to cab roof (without beacon light)
• cab NOT suspended ..............	3027 mm (119.2 in.)	3157 mm (124.3 in.)
• suspended cab in mid-position ..............	3027 mm (119.2 in.)	3157 mm (124.3 in.)
• minimum total height ..............	2927 mm (115.2 in.)	3107 mm (122.3 in.)
• maximum total height ..............	3027 mm (119.2 in.)	3157 mm (124.3 in.)
- from center of rear axle to cab roof (without beacon light)
• cab NOT suspended ..............	2102 mm (82.8 in.)	2181 mm (85.9 in.)
• suspended cab in mid-position ..............	2102 mm (82.8 in.)	2181 mm (85.9 in.)
D - Width
• front axle - flange to flange ..............	1780 mm (70.1 in.)	1780 mm (70.1 in.)
• front axle - maximum tread width without extension ..............	2250 mm (88.6 in.)	2250 mm (88.6 in.)
• rear axle - flange to flange ..............	1664 mm (65.5 in.)	1892 mm (74.5 in.)
• maximum width for road travel ..............	2550 mm (100.4 in.)	2550 mm (100.4 in.)
E - Ground clearance ..............	530 mm (20.9 in.)	560 mm (22.0 in.)
All measurements are made with the following tires
• tires on front wheels ..............	600/65 R28	600/70 R28
• Diameter ..............	152 cm (59.8 in.)	158 cm (62.2 in.)
• tires on rear wheels ..............	710/70 R38	710/70 R42
• Diameter ..............	200 cm (78.7 in.)	205 cm (80.7 in.)
