Change Wheels Safely

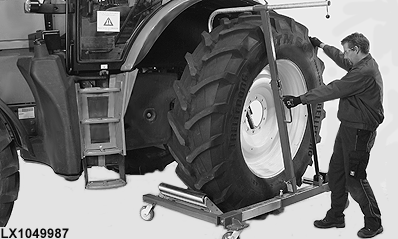

LX1049987-UN-15JUL11

KJD10581 - Wheel Dolly

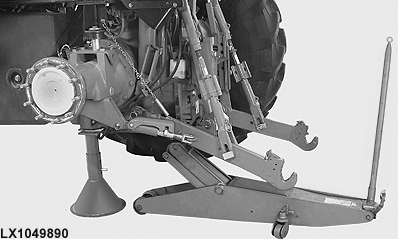

LX1049890-UN-11FEB11

Jack Stand JT02043 or JT02044

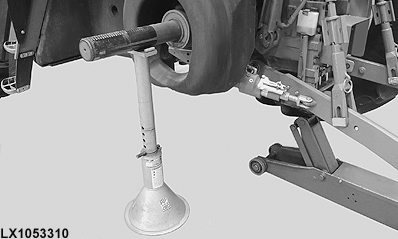

LX1053310-UN-23SEP11

Jack Stand JT02043 or JT02044

JT02043 - Jack Stand, 482 to 736 mm (19 to 29 in.)

JT02044 - Jack Stand, 863 to 1117 mm (34 to 44 in.)

Due to the big size and the heavy weight of tractor wheels, pay attention to the following points when changing wheels:

• Before changing wheels, place tractor on firm, level ground.
• Engage park lock and prevent the tractor from rolling away by putting down chock blocks.
• Remove the ignition key to prevent unauthorized operation.
• When removing rear wheels, prevent front axle oscillation by using wedges.
• When jacking up the tractor, only use the recommended lifting points, see Jack Up the Tractor - Lifting Points in Section 85 of this Operator's Manual.
• Use a stable jack with sufficient lifting force. See Specifications, Loads and Weights in Section 145.
• Stop jacking up the tractor when the wheel is completely off the ground.
• Use a suitable wheel dolly, especially when removing a rear wheel. This is available from your John Deere dealer as special tool KJD10581.
• Support the tractor when a wheel is removed. Jack stands are available from your John Deere dealer as special tools JT02043 and JT02044.
• When installing wheels, make sure that the correct torques are applied, see Tighten Wheel Bolts and Wheel Weights in Section 95 of this Operator's Manual.

CAUTION: Do not operate the tractor until the wheel change has been completed.

When changing wheels, make sure that no-one is standing in the danger zone.

When removing a wheel, make sure that the tractor is supported safely.

When storing removed wheels, make sure that they cannot fall.
