Radio Source Select on the CommandCenter™

RXA0117314-UN-18MAY11

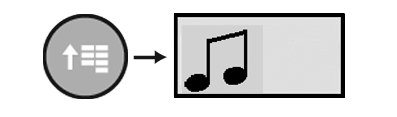

CommandARM™ Menu Button → Radio Softkey

RXA0121616-UN-27OCT11

Source Select Page

A - MW

B - FM

C - LW

D - CD/MP3 (Premium Radio Only)

E - USB (Premium Radio Only)

F - AUX (Premium Radio Only)

G - Bluetooth Audio (Premium Radio Only)

1. Select Menu button.
2. Select Radio softkey.

When the radio is OFF, selecting the radio menu icon will navigate to the Source select page. Selecting a source from the Source Select page will turn the radio ON to that selected source.

When the radio is ON, selecting the radio menu icon will navigate to currently selected sources's home page.

Selecting the Source Select page softkey from a radio home page will navigate to the Source select page. Selecting a source from the Source Select page will change the radio to that selected source.
